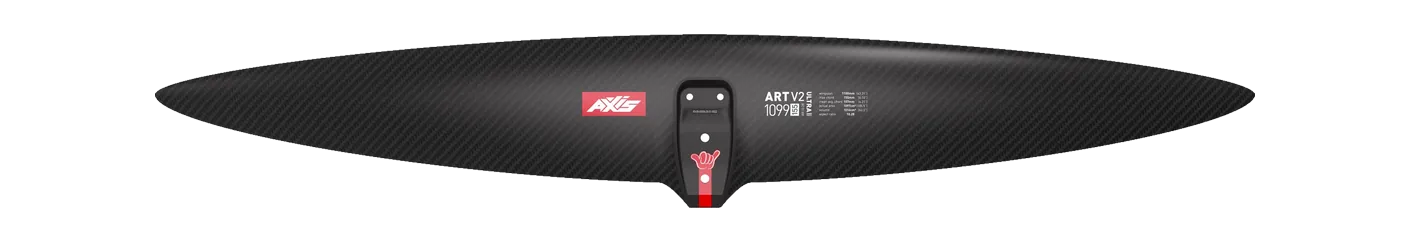

Axis ART v2 1099

1,220area, cm²
1,100span, mm
10.08aspect ratio
Highaspect · AR 9.5 – 11.5

Family ART v2 Area basis flat Chord 146 mm Brand’s category Glide / high aspect Disciplines wing, prone, downwind, sup UHM carbon reinforced · 2025-2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the North Sonar HA1250, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

Specs · table ↓

Axis ART v2 1099 · 1,100 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ North Sonar HA1250 · 1,120 mm

The ART v2 runs 5 sizes, 647–1,220 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.

Its 1,100 mm span is 8% wider than typical for the area — the median across the 115 current wings within 10% of its size is 1,017 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Axis ART v2 1099, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
North	Sonar HA1250	1,250	+2.5%	10.10	+0.2%	1,120	High aspect
Takoon	Flow Front Wing 1200	1,200	-1.6%	10.50	+4.2%	1,120	High aspect
Armstrong	HA (High Aspect) HA1180	1,180	-3.3%	9.63	-4.5%	1,066	High aspect
F-One	EAGLE HM Carbon 1190	1,190	-2.5%	9.40	-6.7%	1,060	Mid aspect
Lift Foils	180 Vario Front Wing	1,161	-4.8%	9.80	-2.8%	1,067	High aspect
KT Foiling	Nomad 1160	1,160	-4.9%	9.50	-5.8%	1,050	Mid aspect

Specifications

Every figure is Axis's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	ART v2
Size	ART v2 1099
Area, cm²	1,220
Area basis	flat
Span, mm	1,100
Chord, mm	146
Aspect ratio	10.08
Band	High aspect
Brand’s category	Glide / high aspect
Disciplines	wing, prone, downwind, sup
Construction	UHM carbon reinforced
Model year	2025-2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
