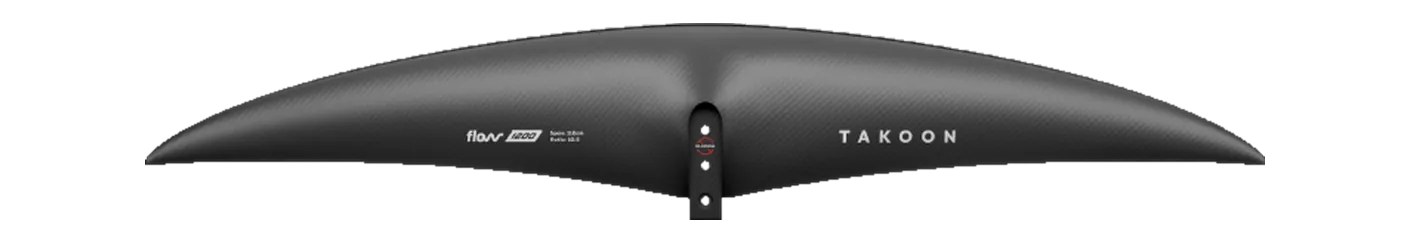

Takoon Flow Front Wing 1200
- 1,200area, cm²
- 1,120span, mm
- 10.50aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Flow Chord 168 mm Brand’s category Glide / high aspect Disciplines wing, prone, downwind, pump
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis ART v2 1099, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Flow Front Wing runs 6 sizes, 600–1,200 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,120 mm span is 11% wider than typical for the area — the median across the 121 current wings within 10% of its size is 1,013 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | ART v2 1099 | 1,220 | +1.7% | 10.08 | -4.0% | 1,100 | High aspect |
| Slingshot | One-Lock Flow 1200 | 1,200 | +0.0% | 11.00 | +4.8% | 1,149 | High aspect |
| Axis | Surge 1150 | 1,199 | -0.1% | 11.04 | +5.1% | 1,150 | High aspect |
| Lift Foils | 180 Vario Front Wing | 1,161 | -3.2% | 9.80 | -6.7% | 1,067 | High aspect |
| Cabrinha | Prestige 1150 | 1,150 | -4.2% | 10.90 | +3.8% | 1,120 | High aspect |
| GONG | Sirus V3 Atmo M | 1,150 | -4.2% | 11.00 | +4.8% | 1,120 | High aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo XL | 1,150 | -4.2% | 10.60 | +1.0% | 1,100 | High aspect |
| GONG | Veloce V3 Atmo XL | 1,150 | -4.2% | 10.10 | -3.8% | 1,080 | High aspect |
| North | Sonar HA1150 | 1,150 | -4.2% | 10.50 | +0.0% | 1,100 | High aspect |
| North | Sonar HA1250 | 1,250 | +4.2% | 10.10 | -3.8% | 1,120 | High aspect |
| Axis | ART (AXIS Research Team) 1099 | 1,144 | -4.7% | 10.60 | +1.0% | 1,100 | High aspect |
| Naish | Excalibur HA Front Wing 1144 | 1,144 | -4.7% | 10.20 | -2.9% | 1,080 | High aspect |
| Axis | Surge 1080 | 1,142 | -4.8% | 10.22 | -2.7% | 1,080 | High aspect |
Specifications
| Family | Flow |
|---|---|
| Size | 1200 |
| Area, cm² | 1,200 |
| Area basis | unknown |
| Span, mm | 1,120 |
| Chord, mm | 168 |
| Aspect ratio | 10.50 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, downwind, pump |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
