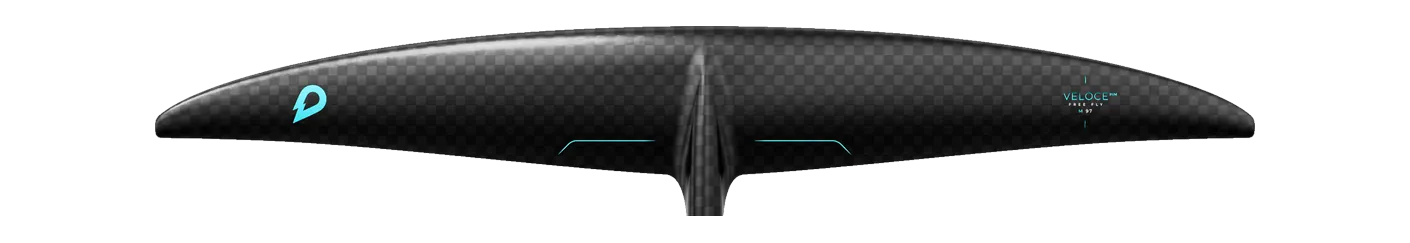

GONG Veloce Free Fly (FF) V3 Atmo XL hydrofoil front wing: 1,150 cm², 1,100 mm span, aspect ratio 10.60, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from GONG's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | ART (AXIS Research Team) ART 1099 | 1,144 | -0.5% | 10.60 | +0.0% | 1,100 | C4 High aspect |
| North | Sonar HA1150 HA1150 | 1,150 | +0.0% | 10.50 | -0.9% | 1,100 | C4 High aspect |
| Cabrinha | Prestige 1150 | 1,150 | +0.0% | 10.90 | +2.8% | 1,120 | C4 High aspect |
| Axis | Surge Surge 1080 | 1,142 | -0.7% | 10.22 | -3.6% | 1,080 | C4 High aspect |
| Naish | Excalibur HA Front Wing Excalibur 1144 | 1,144 | -0.5% | 10.20 | -3.8% | 1,080 | C4 High aspect |
| KT Foiling | Atlas 1130 Atlas 1130 | 1,130 | -1.7% | 10.90 | +2.8% | 1,110 | C4 High aspect |
| Takoon | Flow Front Wing 1200 | 1,200 | +4.3% | 10.50 | -0.9% | 1,120 | C4 High aspect |
| Omen | Agent 1100 Agent 1100 | 1,100 | -4.3% | 10.40 | -1.9% | 1,070 | C4 High aspect |
| AFS | Enduro Front Wing Enduro 1100 | 1,100 | -4.3% | 11.00 | +3.8% | 1,100 | C4 High aspect |
| Duotone | Glide 2.0 SLS 1100 | 1,100 | -4.3% | 10.20 | -3.8% | 1,060 | C4 High aspect |
| Slingshot | One-Lock Flow 1200 | 1,200 | +4.3% | 11.00 | +3.8% | 1,149 | C4 High aspect |
| Axis | Surge Surge 1150 | 1,199 | +4.3% | 11.04 | +4.2% | 1,150 | C4 High aspect |
| Lift Foils | 180 Vario Front Wing 180 | 1,161 | +1.0% | 9.80 | -7.5% | 1,067 | C4 High aspect |
| Family | Veloce |
|---|---|
| Size | XL |
| Area, cm² | 1,150 |
| Area basis | unknown |
| Span, mm | 1,100 |
| Chord, mm | 148 |
| Aspect ratio | 10.60 |
| Band | C4 High aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | wing, kite, prone, sup, downwind, pump, parawing |
| Construction | Team / Carbon HM |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See GONG on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
