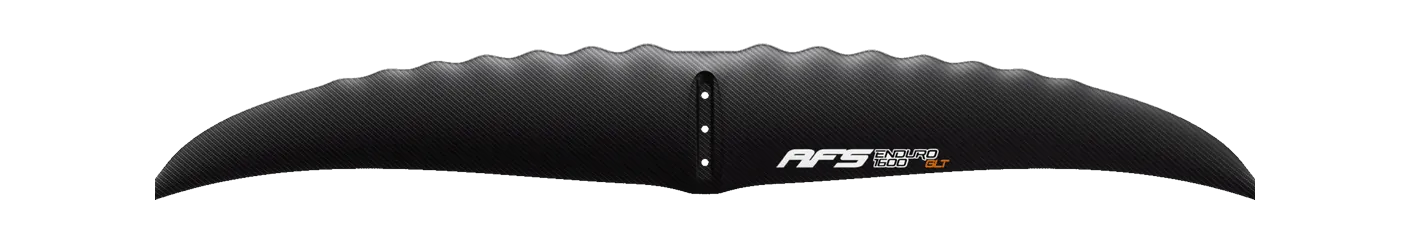

AFS Enduro Front Wing Enduro 1100 hydrofoil front wing: 1,100 cm², 1,100 mm span, aspect ratio 11.00, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from AFS's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sabfoil | Blackbird Razor 1077 Blackbird Razor 1077 | 1,069 | -2.8% | 11.00 | +0.0% | 1,077 | C4 High aspect |
| Sabfoil | Razor PRO 1075 Razor PRO 1075 | 1,061 | -3.5% | 11.00 | +0.0% | 1,075 | C4 High aspect |
| KT Foiling | Atlas 1130 Atlas 1130 | 1,130 | +2.7% | 10.90 | -0.9% | 1,110 | C4 High aspect |
| GONG | Sirus V3 Atmo M | 1,150 | +4.5% | 11.00 | +0.0% | 1,120 | C4 High aspect |
| Cabrinha | Prestige 1150 | 1,150 | +4.5% | 10.90 | -0.9% | 1,120 | C4 High aspect |
| Omen | Agent 1100 Agent 1100 | 1,100 | +0.0% | 10.40 | -5.5% | 1,070 | C4 High aspect |
| Duotone | Glide 2.0 SLS 1100 | 1,100 | +0.0% | 10.20 | -7.3% | 1,060 | C4 High aspect |
| RRD | Dynamic Pro Flying Fish Front Wing Y31 1050 | 1,050 | -4.5% | 10.70 | -2.7% | 1,060 | C4 High aspect |
| Axis | ART (AXIS Research Team) ART 1099 | 1,144 | +4.0% | 10.60 | -3.6% | 1,100 | C4 High aspect |
| Axis | ART PRO ART PRO 1121 | 1,088 | -1.1% | 11.78 | +7.1% | 1,121 | C5 Very high aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo XL | 1,150 | +4.5% | 10.60 | -3.6% | 1,100 | C4 High aspect |
| North | Sonar HA1050 HA1050 | 1,050 | -4.5% | 10.50 | -4.5% | 1,050 | C4 High aspect |
| North | Sonar HA1150 HA1150 | 1,150 | +4.5% | 10.50 | -4.5% | 1,100 | C4 High aspect |
| Takoon | Flow Front Wing 1050 | 1,050 | -4.5% | 10.50 | -4.5% | 1,050 | C4 High aspect |
| Takoon | Swell Front Wing 1050 | 1,050 | -4.5% | 11.50 | +4.5% | 1,100 | C4 High aspect |
| Axis | Surge Surge 1080 | 1,142 | +3.8% | 10.22 | -7.1% | 1,080 | C4 High aspect |
| Naish | Excalibur HA Front Wing Excalibur 1144 | 1,144 | +4.0% | 10.20 | -7.3% | 1,080 | C4 High aspect |
| Family | ENDURO |
|---|---|
| Size | Enduro 1100 |
| Area, cm² | 1,100 |
| Area basis | unknown |
| Span, mm | 1,100 |
| Chord, mm | 136 |
| Aspect ratio | 11.00 |
| Band | C4 High aspect |
| Brand files it under | Downwind |
| Disciplines | downwind, wing, parawing, pump, sup |
| Construction | HR Carbon / Corecell |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See AFS on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
