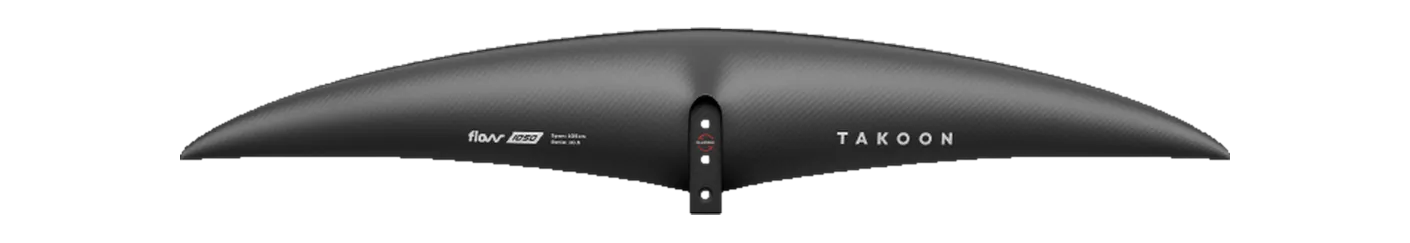

Takoon Flow Front Wing 1050
- 1,050area, cm²
- 1,050span, mm
- 10.50aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Flow Chord 156 mm Brand’s category Glide / high aspect Disciplines wing, prone, downwind, pump
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the North Sonar HA1050, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Flow Front Wing runs 6 sizes, 600–1,200 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,050 mm span is 8% wider than typical for the area — the median across the 131 current wings within 10% of its size is 968 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar HA1050 | 1,050 | +0.0% | 10.50 | +0.0% | 1,050 | High aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo L | 1,040 | -1.0% | 10.60 | +1.0% | 1,050 | High aspect |
| RRD | Dynamic Pro Flying Fish Front Wing Y31 1050 | 1,050 | +0.0% | 10.70 | +1.9% | 1,060 | High aspect |
| GONG | Veloce V3 Atmo L | 1,040 | -1.0% | 10.10 | -3.8% | 1,030 | High aspect |
| Sabfoil | Blackbird Razor 1077 | 1,069 | +1.8% | 11.00 | +4.8% | 1,077 | High aspect |
| Sabfoil | Razor PRO 1075 | 1,061 | +1.0% | 11.00 | +4.8% | 1,075 | High aspect |
| Axis | ART (AXIS Research Team) 999 | 1,038 | -1.1% | 9.90 | -5.7% | 999 | High aspect |
| Axis | ART v2 999 | 1,038 | -1.1% | 9.90 | -5.7% | 1,000 | High aspect |
| AFS | Enduro Front Wing 1100 | 1,100 | +4.8% | 11.00 | +4.8% | 1,100 | High aspect |
| AFS | Enduro Front Wing 1000 | 1,000 | -4.8% | 11.00 | +4.8% | 1,050 | High aspect |
| AFS | Pure HA Fuselink Foil (monobloc front wing + fuselage) 1100 | 1,100 | +4.8% | 11.00 | +4.8% | 1,100 | High aspect |
| Duotone | Glide 2.0 SLS 1100 | 1,100 | +4.8% | 10.20 | -2.9% | 1,060 | High aspect |
| Omen | Agent 1100 | 1,100 | +4.8% | 10.40 | -1.0% | 1,070 | High aspect |
| Slingshot | One-Lock Flow 1000 | 1,000 | -4.8% | 11.00 | +4.8% | 1,049 | High aspect |
Specifications
| Family | Flow |
|---|---|
| Size | 1050 |
| Area, cm² | 1,050 |
| Area basis | unknown |
| Span, mm | 1,050 |
| Chord, mm | 156 |
| Aspect ratio | 10.50 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, downwind, pump |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
