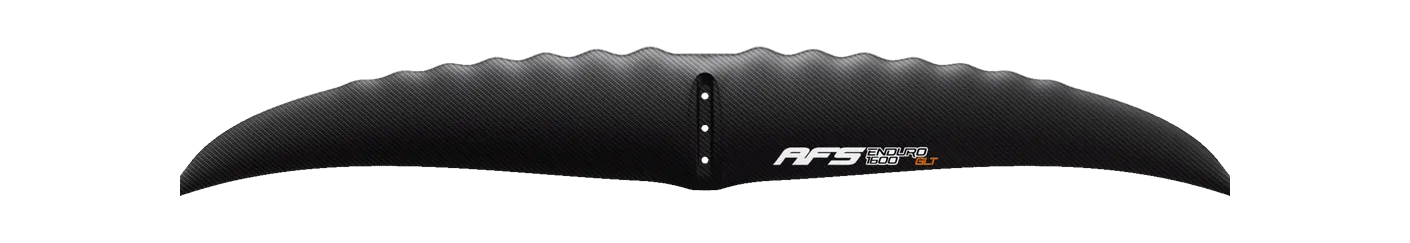

AFS Enduro Front Wing Enduro 1000 hydrofoil front wing: 1,000 cm², 1,050 mm span, aspect ratio 11.00, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from AFS's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Flow 1000 | 1,000 | +0.0% | 11.00 | +0.0% | 1,049 | C4 High aspect |
| GONG | Hyper Trail V3 Atmo L | 1,000 | +0.0% | 11.40 | +3.6% | 1,070 | C4 High aspect |
| KT Foiling | Atlas 960 Atlas 960 | 960 | -4.0% | 10.80 | -1.8% | 1,020 | C4 High aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo L | 1,040 | +4.0% | 10.60 | -3.6% | 1,050 | C4 High aspect |
| RRD | Dynamic Pro Flying Fish Front Wing Y31 1050 | 1,050 | +5.0% | 10.70 | -2.7% | 1,060 | C4 High aspect |
| North | Sonar HA950 HA950 | 950 | -5.0% | 10.60 | -3.6% | 1,000 | C4 High aspect |
| North | Sonar HA1050 HA1050 | 1,050 | +5.0% | 10.50 | -4.5% | 1,050 | C4 High aspect |
| Takoon | Flow Front Wing 1050 | 1,050 | +5.0% | 10.50 | -4.5% | 1,050 | C4 High aspect |
| Takoon | Swell Front Wing 1050 | 1,050 | +5.0% | 11.50 | +4.5% | 1,100 | C4 High aspect |
| Sabfoil | Blackbird Razor 977 Blackbird Razor 977 | 953 | -4.7% | 10.20 | -7.3% | 977 | C4 High aspect |
| Family | ENDURO |
|---|---|
| Size | Enduro 1000 |
| Area, cm² | 1,000 |
| Area basis | unknown |
| Span, mm | 1,050 |
| Chord, mm | 130 |
| Aspect ratio | 11.00 |
| Band | C4 High aspect |
| Brand files it under | Downwind |
| Disciplines | downwind, wing, parawing, pump, sup |
| Construction | HR Carbon / Corecell |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See AFS on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
