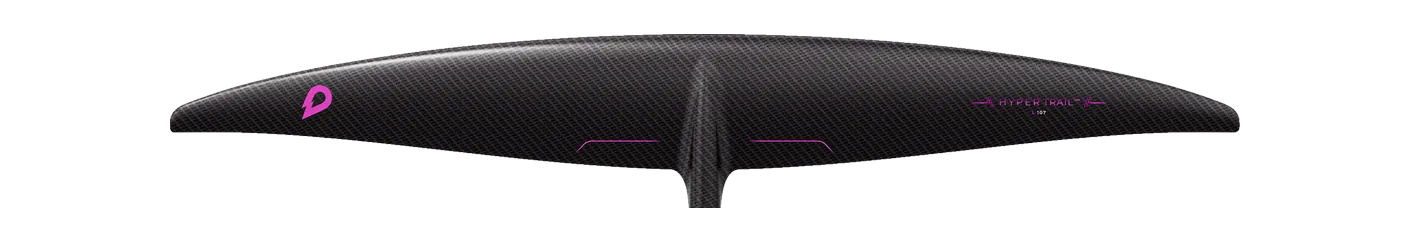

GONG Hyper Trail V3 Atmo L
- 1,000area, cm²
- 1,070span, mm
- 11.40aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Trail Chord 135 mm Brand’s category Pump / dock Disciplines pump Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Slingshot One-Lock Flow 1000 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Hyper Trail V3 Atmo runs 6 sizes, 700–1,750 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,070 mm span is 13% wider than typical for the area — the median across the 148 current wings within 10% of its size is 950 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Enduro Front Wing 1000 | 1,000 | +0.0% | 11.00 | -3.5% | 1,050 | High aspect |
| Slingshot | One-Lock Flow 1000 | 1,000 | +0.0% | 11.00 | -3.5% | 1,049 | High aspect |
| F-One | EAGLE X UHM Carbon 1000 | 1,000 | +0.0% | 12.00 | +5.3% | 1,095 | Very high aspect |
| AFS | Evo HA Front Wing HA1000 | 1,000 | +0.0% | 12.10 | +6.1% | 1,100 | Very high aspect |
| KT Foiling | Atlas 960 | 960 | -4.0% | 10.80 | -5.3% | 1,020 | High aspect |
| North | Sonar HA1050 | 1,050 | +5.0% | 10.50 | -7.9% | 1,050 | High aspect |
| North | Sonar HA950 | 950 | -5.0% | 10.60 | -7.0% | 1,000 | High aspect |
| RRD | Dynamic Pro Flying Fish Front Wing Y31 1050 | 1,050 | +5.0% | 10.70 | -6.1% | 1,060 | High aspect |
| Takoon | Flow Front Wing 1050 | 1,050 | +5.0% | 10.50 | -7.9% | 1,050 | High aspect |
| Takoon | Swell Front Wing 1050 | 1,050 | +5.0% | 11.50 | +0.9% | 1,100 | High aspect |
Specifications
| Family | Trail |
|---|---|
| Size | L |
| Area, cm² | 1,000 |
| Area basis | unknown |
| Span, mm | 1,070 |
| Chord, mm | 135 |
| Aspect ratio | 11.40 |
| Band | High aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
