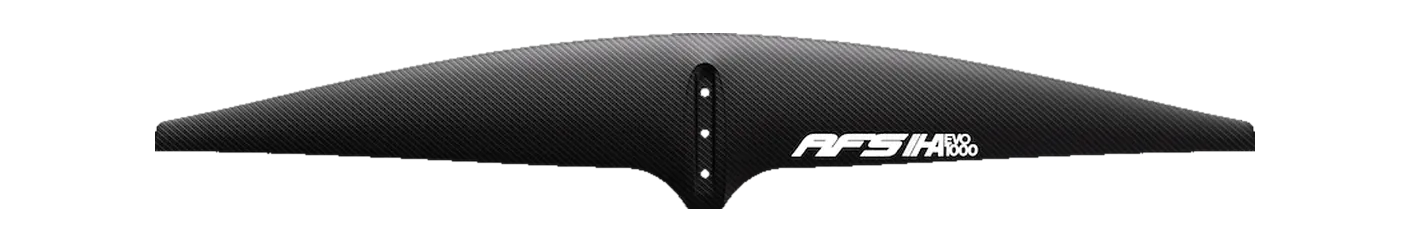

AFS Evo HA Front Wing HA1000

1,000area, cm²
1,100span, mm
12.10aspect ratio
Very highaspect · AR 11.5 – 15.0

Family EVO Chord 135 mm Brand’s category All-round / freeride Disciplines wing, downwind, parawing HR Carbon / Corecell (per Evo range) · 2026

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the F-One EAGLE X UHM Carbon 1000, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

4Code Foils R Series Front Wing 960Rno outlineSpecs · table ↓

AFS Evo HA Front Wing HA1000 · 1,100 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ F-One EAGLE X UHM Carbon 1000 · 1,095 mm

Its 1,100 mm span is 16% wider than typical for the area — the median across the 148 current wings within 10% of its size is 950 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the AFS Evo HA Front Wing HA1000, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
F-One	EAGLE X UHM Carbon 1000	1,000	+0.0%	12.00	-0.8%	1,095	Very high aspect
Armstrong	UHA (Ultra High Aspect) UHA970	970	-3.0%	12.60	+4.1%	1,106	Very high aspect
GONG	Hyper Trail V3 Atmo L	1,000	+0.0%	11.40	-5.8%	1,070	High aspect
Code Foils	R Series Front Wing 960R	960	-4.0%	13.00	+7.4%	1,115	Very high aspect
GONG	Veloce Light Wind (LW) V3 Atmo L	1,050	+5.0%	12.70	+5.0%	1,150	Very high aspect
Takoon	Swell Front Wing 1050	1,050	+5.0%	11.50	-5.0%	1,100	High aspect

Specifications

Every figure is AFS's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	EVO
Size	HA1000
Area, cm²	1,000
Area basis	unknown
Span, mm	1,100
Chord, mm	135
Aspect ratio	12.10
Band	Very high aspect
Brand’s category	All-round / freeride
Disciplines	wing, downwind, parawing
Construction	HR Carbon / Corecell (per Evo range)
Model year	2026
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
