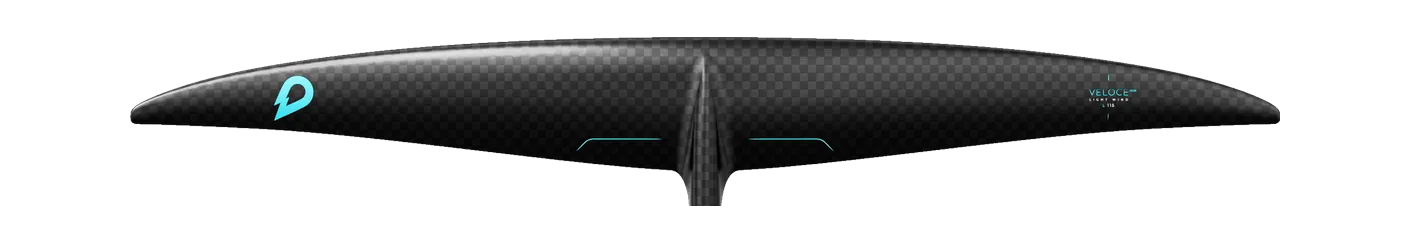

GONG Veloce Light Wind (LW) V3 Atmo L
- 1,050area, cm²
- 1,150span, mm
- 12.70aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Veloce Chord 134 mm Brand’s category Glide / high aspect Disciplines wing, kite, downwind, pump, parawing Team / Carbon HM · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Armstrong UHA (Ultra High Aspect) UHA1070, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Veloce Light Wind (LW) V3 Atmo runs 4 sizes, 900–1,400 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,150 mm span is 19% wider than typical for the area — the median across the 131 current wings within 10% of its size is 968 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | UHA (Ultra High Aspect) UHA1070 | 1,070 | +1.9% | 12.60 | -0.8% | 1,161 | Very high aspect |
| Code Foils | R Series Front Wing 1075R | 1,075 | +2.4% | 13.00 | +2.4% | 1,180 | Very high aspect |
| Sabfoil | Leviathan PRO 1160 | 1,083 | +3.1% | 12.42 | -2.2% | 1,160 | Very high aspect |
| Unifoil | Quest 160 | 1,032 | -1.7% | 13.40 | +5.5% | 1,175 | Very high aspect |
| Axis | ART PRO 1121 | 1,088 | +3.6% | 11.78 | -7.2% | 1,121 | Very high aspect |
| AFS | Evo HA Front Wing HA1000 | 1,000 | -4.8% | 12.10 | -4.7% | 1,100 | Very high aspect |
| F-One | EAGLE X UHM Carbon 1000 | 1,000 | -4.8% | 12.00 | -5.5% | 1,095 | Very high aspect |
| North | Sonar DW1100 | 1,100 | +4.8% | 12.00 | -5.5% | 1,150 | Very high aspect |
Specifications
| Family | Veloce |
|---|---|
| Size | L |
| Area, cm² | 1,050 |
| Area basis | unknown |
| Span, mm | 1,150 |
| Chord, mm | 134 |
| Aspect ratio | 12.70 |
| Band | Very high aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, kite, downwind, pump, parawing |
| Construction | Team / Carbon HM |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
