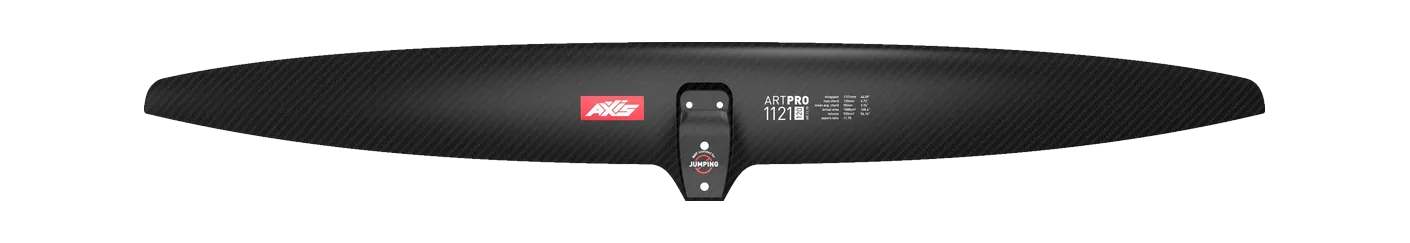

Axis ART PRO 1121
- 1,088area, cm²
- 1,121span, mm
- 11.78aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family ART PRO Area basis flat Chord 120 mm Brand’s category Glide / high aspect carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Sabfoil Leviathan PRO 1160 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The ART PRO runs 10 sizes, 518–1,647 cm²; aspect ratio moves 11.1–12.2 across the range.
Its 1,121 mm span is 13% wider than typical for the area — the median across the 114 current wings within 10% of its size is 990 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| North | Sonar DW1100 | 1,100 | +1.1% | 12.00 | +1.9% | 1,150 | Very high aspect |
| Sabfoil | Leviathan PRO 1160 | 1,083 | -0.5% | 12.42 | +5.4% | 1,160 | Very high aspect |
| Takoon | Swell Front Wing 1050 | 1,050 | -3.5% | 11.50 | -2.4% | 1,100 | High aspect |
| AFS | Enduro Front Wing 1100 | 1,100 | +1.1% | 11.00 | -6.6% | 1,100 | High aspect |
| AFS | Pure HA Fuselink Foil (monobloc front wing + fuselage) 1100 | 1,100 | +1.1% | 11.00 | -6.6% | 1,100 | High aspect |
| Sabfoil | Blackbird Razor 1077 | 1,069 | -1.7% | 11.00 | -6.6% | 1,077 | High aspect |
| Sabfoil | Razor PRO 1075 | 1,061 | -2.5% | 11.00 | -6.6% | 1,075 | High aspect |
| Armstrong | UHA (Ultra High Aspect) UHA1070 | 1,070 | -1.7% | 12.60 | +7.0% | 1,161 | Very high aspect |
| KT Foiling | Atlas 1130 | 1,130 | +3.9% | 10.90 | -7.5% | 1,110 | High aspect |
| GONG | Veloce Light Wind (LW) V3 Atmo L | 1,050 | -3.5% | 12.70 | +7.8% | 1,150 | Very high aspect |
| Naish | SHA Foil Front Wing 1133 | 1,133 | +4.1% | 12.71 | +7.9% | 1,200 | Very high aspect |
Specifications
| Family | ART PRO |
|---|---|
| Size | ART PRO 1121 |
| Area, cm² | 1,088 |
| Area basis | flat |
| Span, mm | 1,121 |
| Chord, mm | 120 |
| Aspect ratio | 11.78 |
| Band | Very high aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | — |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
