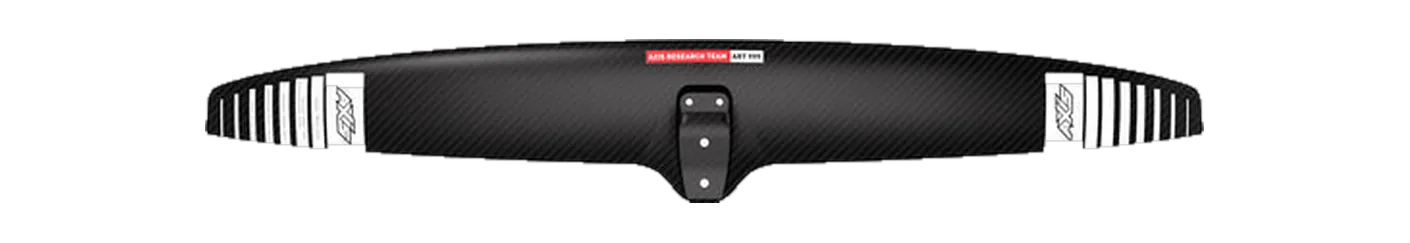

Axis ART (AXIS Research Team) 999
- 1,038area, cm²
- 999span, mm
- 9.90aspect ratio
- Highaspect · AR 9.5 – 11.5
Family ART Area basis flat Chord 135 mm Brand’s category Glide / high aspect Disciplines wing, prone, sup, downwind, pump carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Veloce V3 Atmo L, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The ART runs 5 sizes, 556–1,144 cm²; aspect ratio moves 9.0–10.6 across the range.
Its 999 mm span is 5% wider than typical for the area — the median across the 125 current wings within 10% of its size is 950 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Veloce V3 Atmo L | 1,040 | +0.2% | 10.10 | +2.0% | 1,030 | High aspect |
| Cabrinha | Fusion H-Series MkII H1050 | 1,050 | +1.2% | 9.52 | -3.8% | 1,000 | High aspect |
| Unifoil | Evolution 155 | 1,000 | -3.7% | 9.40 | -5.1% | 968 | Mid aspect |
| North | Sonar HA1050 | 1,050 | +1.2% | 10.50 | +6.1% | 1,050 | High aspect |
| RRD | Flying Fish Front Wing Y30 1050 | 1,050 | +1.2% | 9.30 | -6.1% | 990 | Mid aspect |
| Takoon | Flow Front Wing 1050 | 1,050 | +1.2% | 10.50 | +6.1% | 1,050 | High aspect |
| Armstrong | HA (High Aspect) HA1080 | 1,080 | +4.0% | 9.63 | -2.7% | 1,020 | High aspect |
| ENSIS | FLOW ACE Front Wing 1080 | 1,080 | +4.0% | 9.50 | -4.0% | 1,013 | Mid aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo L | 1,040 | +0.2% | 10.60 | +7.1% | 1,050 | High aspect |
| Naish | Jet HA Front Wing 1040 | 1,040 | +0.2% | 9.20 | -7.1% | 980 | Mid aspect |
| F-One | EAGLE HM Carbon 990 | 990 | -4.6% | 9.50 | -4.0% | 970 | Mid aspect |
Specifications
| Family | ART |
|---|---|
| Size | ART 999 |
| Area, cm² | 1,038 |
| Area basis | flat |
| Span, mm | 999 |
| Chord, mm | 135 |
| Aspect ratio | 9.90 |
| Band | High aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, sup, downwind, pump |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
