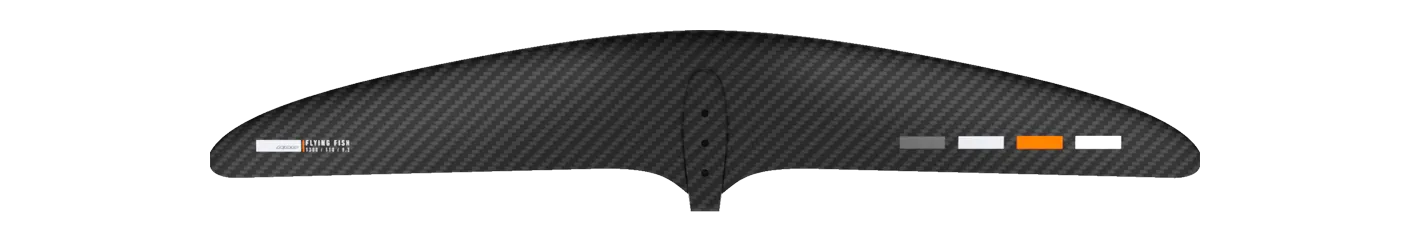

RRD Flying Fish Front Wing Y30 1050
- 1,050area, cm²
- 990span, mm
- 9.30aspect ratio
- Midaspect · AR 8.5 – 9.5
Family FLYING FISH Brand’s category Downwind Disciplines wing, prone, downwind
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Jet HA Front Wing 1040, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Flying Fish Front Wing Y30 runs 4 sizes, 750–1,300 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 990 mm span is 2% wider than typical for the area — the median across the 131 current wings within 10% of its size is 968 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Jet HA Front Wing 1040 | 1,040 | -1.0% | 9.20 | -1.1% | 980 | Mid aspect |
| Cabrinha | Fusion H-Series MkII H1050 | 1,050 | +0.0% | 9.52 | +2.4% | 1,000 | High aspect |
| AFS | Silk V2 Front Wing 1050 | 1,050 | +0.0% | 9.00 | -3.2% | 972 | Mid aspect |
| Axis | Surge 1010 | 1,076 | +2.5% | 9.49 | +2.0% | 1,010 | Mid aspect |
| Armstrong | HA (High Aspect) HA1080 | 1,080 | +2.9% | 9.63 | +3.5% | 1,020 | High aspect |
| ENSIS | FLOW ACE Front Wing 1080 | 1,080 | +2.9% | 9.50 | +2.2% | 1,013 | Mid aspect |
| Duotone | Crest D/LAB 1050 | 1,050 | +0.0% | 8.80 | -5.4% | 960 | Mid aspect |
| F-One | EAGLE HM Carbon 1090 | 1,090 | +3.8% | 9.50 | +2.2% | 1,020 | Mid aspect |
| Axis | ART (AXIS Research Team) 999 | 1,038 | -1.1% | 9.90 | +6.5% | 999 | High aspect |
| Axis | ART v2 999 | 1,038 | -1.1% | 9.90 | +6.5% | 1,000 | High aspect |
| GONG | Fluid V3 Atmo L (Team / Carbon HM) | 1,010 | -3.8% | 8.70 | -6.5% | 940 | Mid aspect |
| Takoon | Flare Front Wing 1050 | 1,050 | +0.0% | 8.60 | -7.5% | 950 | Mid aspect |
| Unifoil | Evolution 155 | 1,000 | -4.8% | 9.40 | +1.1% | 968 | Mid aspect |
Specifications
| Family | FLYING FISH |
|---|---|
| Size | 1050 |
| Area, cm² | 1,050 |
| Area basis | unknown |
| Span, mm | 990 |
| Chord, mm | — |
| Aspect ratio | 9.30 |
| Band | Mid aspect |
| Brand’s category | Downwind |
| Disciplines | wing, prone, downwind |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
