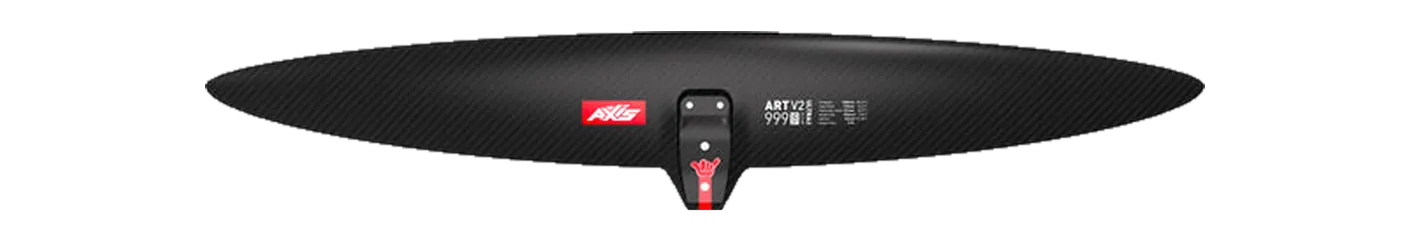

Axis ART v2 ART v2 999 hydrofoil front wing: 1,038 cm², 1,000 mm span, aspect ratio 9.90, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Veloce V3 Atmo L | 1,040 | +0.2% | 10.10 | +2.0% | 1,030 | C4 High aspect |
| Cabrinha | Fusion H-Series MkII H1050 | 1,050 | +1.2% | 9.52 | -3.8% | 1,000 | C4 High aspect |
| Armstrong | HA (High Aspect) HA1080 | 1,080 | +4.0% | 9.63 | -2.7% | 1,020 | C4 High aspect |
| North | Sonar HA1050 HA1050 | 1,050 | +1.2% | 10.50 | +6.1% | 1,050 | C4 High aspect |
| RRD | Flying Fish Front Wing Y30 1050 | 1,050 | +1.2% | 9.30 | -6.1% | 990 | C3 Mid aspect |
| Takoon | Flow Front Wing 1050 | 1,050 | +1.2% | 10.50 | +6.1% | 1,050 | C4 High aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo L | 1,040 | +0.2% | 10.60 | +7.1% | 1,050 | C4 High aspect |
| Naish | Jet HA Front Wing Jet HA 1040 | 1,040 | +0.2% | 9.20 | -7.1% | 980 | C3 Mid aspect |
| ENSIS | FLOW ACE Front Wing 1080 | 1,080 | +4.0% | 9.50 | -4.0% | 1,013 | C3 Mid aspect |
| F-One | EAGLE HM Carbon EAGLE 990 | 990 | -4.6% | 9.50 | -4.0% | 970 | C3 Mid aspect |
| Unifoil | Evolution 155 Evolution 155 | 1,000 | -3.7% | 9.40 | -5.1% | 968 | C3 Mid aspect |
| Family | ART v2 |
|---|---|
| Size | ART v2 999 |
| Area, cm² | 1,038 |
| Area basis | flat |
| Span, mm | 1,000 |
| Chord, mm | 135 |
| Aspect ratio | 9.90 |
| Band | C4 High aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | wing, prone, downwind, sup |
| Construction | UHM carbon reinforced |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
