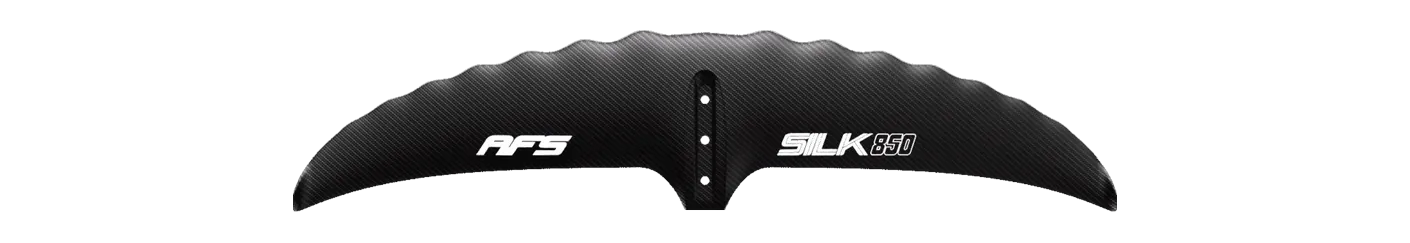

AFS Silk Front Wing (V1) 850
- Discontinuedsuperseded or no longer in the brand’s current range
- 850area, cm²
- 824span, mm
- 8.00aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family SILK Chord 134 mm Brand’s category Surf / carve Disciplines prone, wing, sup HR Carbon / Corecell Core · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the F-One SK8 HM Carbon (T2) 850, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 824 mm span is 7% narrower than typical for the area — the median across the 127 current wings within 10% of its size is 890 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | SK8 HM Carbon (T2) 850 | 850 | +0.0% | 8.00 | +0.0% | 825 | Mid-low aspect |
| Cabrinha | Whippit 850 | 850 | +0.0% | 8.10 | +1.2% | 830 | Mid-low aspect |
| Unifoil | Aggression 130 | 838 | -1.4% | 8.10 | +1.2% | 825 | Mid-low aspect |
| Takoon | Flare Front Wing 850 | 850 | +0.0% | 8.30 | +3.8% | 840 | Mid-low aspect |
| F-One | SUSHI UHM Carbon 820 | 820 | -3.5% | 7.70 | -3.7% | 795 | Mid-low aspect |
| GONG | Curve H V3 FG S | 820 | -3.5% | 8.40 | +5.0% | 830 | Mid-low aspect |
| GONG | Ypra Surf Carve V3 Atmo L | 820 | -3.5% | 8.20 | +2.5% | 820 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 840 | 840 | -1.2% | 7.50 | -6.2% | 795 | Mid-low aspect |
| Takoon | XS-Glide Front Wing 820 | 820 | -3.5% | 7.50 | -6.2% | 786 | Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA890 | 890 | +4.7% | 8.00 | +0.0% | 860 | Mid-low aspect |
| Code Foils | X Series Front Wing 810X | 810 | -4.7% | 8.20 | +2.5% | 814 | Mid-low aspect |
| Code Foils | X Series Front Wing 890X | 890 | +4.7% | 8.20 | +2.5% | 852 | Mid-low aspect |
| GONG | Fluid H V3 FG S | 810 | -4.7% | 8.40 | +5.0% | 820 | Mid-low aspect |
| Sroka | S-Foil 810 S HA | 810 | -4.7% | 7.90 | -1.2% | 780 | Mid-low aspect |
Specifications
| Family | SILK |
|---|---|
| Size | 850 |
| Area, cm² | 850 |
| Area basis | unknown |
| Span, mm | 824 |
| Chord, mm | 134 |
| Aspect ratio | 8.00 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wing, sup |
| Construction | HR Carbon / Corecell Core |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
