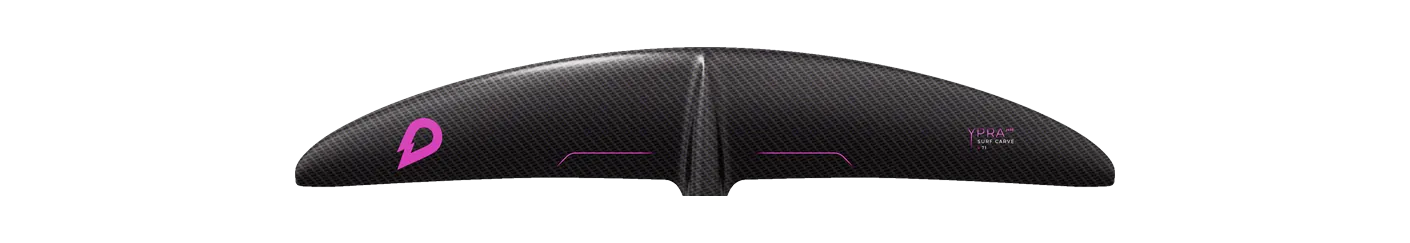

GONG Ypra Surf Carve V3 Atmo L
- 820area, cm²
- 820span, mm
- 8.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Ypra Chord 132 mm Brand’s category Surf / carve Disciplines prone, wing, sup Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Sroka S-Foil 810 S HA (#3), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ypra Surf Carve V3 Atmo runs 4 sizes, 520–820 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 820 mm span is 7% narrower than typical for the area — the median across the 139 current wings within 10% of its size is 880 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | X Series Front Wing 810X | 810 | -1.2% | 8.20 | +0.0% | 814 | Mid-low aspect |
| Unifoil | Aggression 130 | 838 | +2.2% | 8.10 | -1.2% | 825 | Mid-low aspect |
| Sroka | S-Foil 810 S HA | 810 | -1.2% | 7.90 | -3.7% | 780 | Mid-low aspect |
| Duotone | Blitz D/LAB 800 | 800 | -2.4% | 8.40 | +2.4% | 810 | Mid-low aspect |
| KT Foiling | Halo 800 | 800 | -2.4% | 8.00 | -2.4% | 800 | Mid-low aspect |
| Naish | Siren MA Front Wing 800 | 800 | -2.4% | 8.41 | +2.6% | 820 | Mid-low aspect |
| Sabfoil | 808 Balz Muller Limited Müller | 792 | -3.4% | 8.26 | +0.7% | 808 | Mid-low aspect |
| Sabfoil | Blackbird 805 Balz Muller Signature | 792 | -3.4% | 8.30 | +1.2% | 805 | Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA790 | 790 | -3.7% | 8.00 | -2.4% | 817 | Mid-low aspect |
| Cabrinha | Whippit 850 | 850 | +3.7% | 8.10 | -1.2% | 830 | Mid-low aspect |
| F-One | SK8 HM Carbon (T2) 850 | 850 | +3.7% | 8.00 | -2.4% | 825 | Mid-low aspect |
| Takoon | Flare Front Wing 850 | 850 | +3.7% | 8.30 | +1.2% | 840 | Mid-low aspect |
| F-One | SUSHI UHM Carbon 820 | 820 | +0.0% | 7.70 | -6.1% | 795 | Mid-low aspect |
| Takuma | Kujira II Front Wing 800 | 800 | -2.4% | 7.70 | -6.1% | 784 | Mid-low aspect |
| Duotone | Whizz SLS 850 | 850 | +3.7% | 8.70 | +6.1% | 860 | Mid aspect |
| Slingshot | One-Lock Glide 825 | 825 | +0.6% | 8.80 | +7.3% | 850 | Mid aspect |
| Sabfoil | Medusa PRO 869 | 854 | +4.1% | 8.84 | +7.8% | 869 | Mid aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | L |
| Area, cm² | 820 |
| Area basis | unknown |
| Span, mm | 820 |
| Chord, mm | 132 |
| Aspect ratio | 8.20 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wing, sup |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
