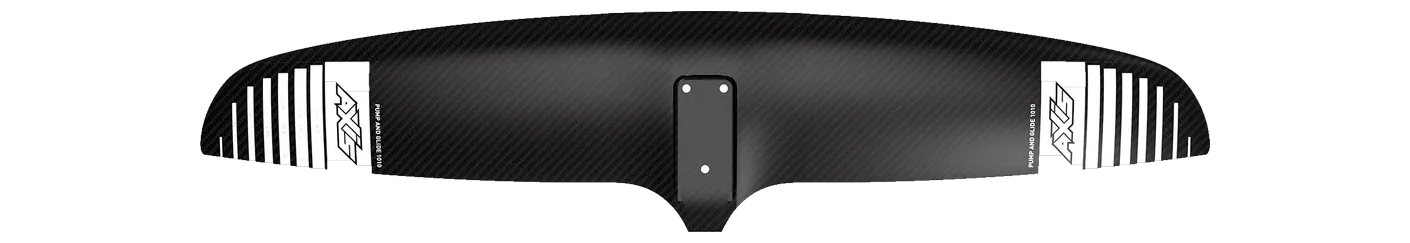

Axis PNG (Pump and Glide) 1010
- 1,430area, cm²
- 1,010span, mm
- 7.13aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family PNG Area basis flat Chord 170 mm Brand’s category Pump / dock Disciplines downwind, sup, prone, pump, wing, wake, kite carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Takoon X-Glide V2 Front Wing 1450, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The PNG runs 6 sizes, 1,102–2,080 cm², and changes proportion as it grows: aspect ratio runs 6.8 at one end of the range to 9.9 at the other, so its sizes differ in shape as well as in area.
Its 1,010 mm span is 8% narrower than typical for the area — the median across the 93 current wings within 10% of its size is 1,100 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | X-Glide V2 Front Wing 1450 | 1,450 | +1.4% | 7.20 | +1.0% | 1,018 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 1390 | 1,390 | -2.8% | 7.50 | +5.2% | 1,020 | Mid-low aspect |
| AFS | Evo Front Wing 1450 | 1,450 | +1.4% | 7.60 | +6.6% | 1,040 | Mid-low aspect |
| GONG | Ascent V3 XXL | 1,500 | +4.9% | 7.00 | -1.8% | 1,020 | Mid-low aspect |
Specifications
| Family | PNG |
|---|---|
| Size | PNG 1010 |
| Area, cm² | 1,430 |
| Area basis | flat |
| Span, mm | 1,010 |
| Chord, mm | 170 |
| Aspect ratio | 7.13 |
| Band | Mid-low aspect |
| Brand’s category | Pump / dock |
| Disciplines | downwind, sup, prone, pump, wing, wake, kite |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
