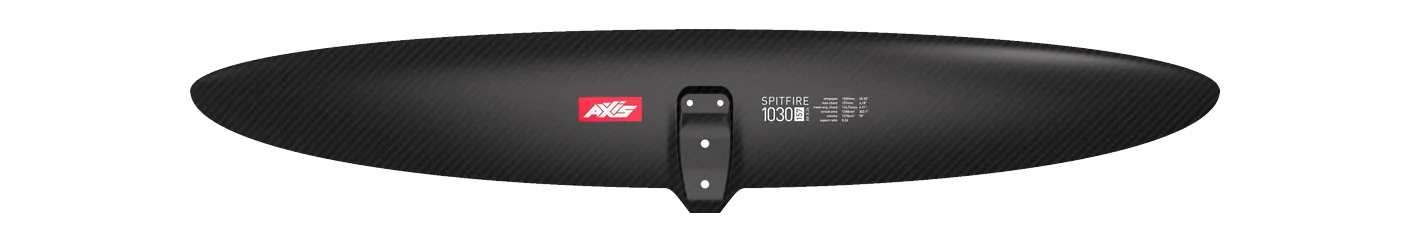

Axis Spitfire 1030
- 1,308area, cm²
- 1,030span, mm
- 8.26aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Spitfire Area basis flat Chord 157 mm Brand’s category Surf / carve Disciplines prone carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Fluid H V3 FG XXL, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Spitfire runs 10 sizes, 628–1,554 cm², and changes proportion as it grows: aspect ratio runs 6.1 at one end of the range to 9.1 at the other, so its sizes differ in shape as well as in area.
Its 1,030 mm span is 2% narrower than typical for the area — the median across the 104 current wings within 10% of its size is 1,052 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Fluid H V3 FG XXL | 1,310 | +0.2% | 8.40 | +1.7% | 1,050 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1300 | 1,300 | -0.6% | 8.00 | -3.1% | 1,020 | Mid-low aspect |
| Unifoil | Progression 200 | 1,290 | -1.4% | 7.90 | -4.4% | 1,010 | Mid-low aspect |
| GONG | Fluid V3 Atmo XXL (Team / Carbon HM) | 1,310 | +0.2% | 8.70 | +5.3% | 1,070 | Mid aspect |
| ENSIS | FLOW ACE Front Wing 1260 | 1,260 | -3.7% | 8.14 | -1.5% | 1,013 | Mid-low aspect |
| Takuma | Kujira II Front Wing 1250 | 1,250 | -4.4% | 8.30 | +0.5% | 1,018 | Mid-low aspect |
| GONG | Curve H V3 FG XXL | 1,370 | +4.7% | 8.40 | +1.7% | 1,070 | Mid-low aspect |
| ENSIS | STRIDE ACE Front Wing 1360 | 1,360 | +4.0% | 8.90 | +7.7% | 1,100 | Mid aspect |
| Slingshot | One-Lock Glide 1325 | 1,325 | +1.3% | 8.90 | +7.7% | 1,099 | Mid aspect |
| AFS | Evo Front Wing 1250 | 1,250 | -4.4% | 7.60 | -8.0% | 970 | Mid-low aspect |
Specifications
| Family | Spitfire |
|---|---|
| Size | Spitfire 1030 |
| Area, cm² | 1,308 |
| Area basis | flat |
| Span, mm | 1,030 |
| Chord, mm | 157 |
| Aspect ratio | 8.26 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
