Fast Bobby · wings · Duotone · discontinued

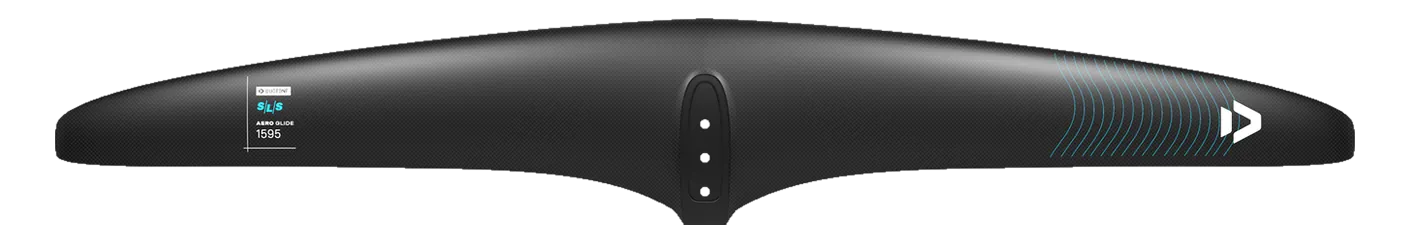

Duotone Aero Glide SLS 1595

Discontinuedsuperseded or no longer in the brand’s current range
1,595area, cm²
1,300span, mm
10.60aspect ratio
Highaspect · AR 9.5 – 11.5

Family Aero Glide Brand’s category Glide / high aspect Disciplines wing, downwind, pump SLS · 2024

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Axis PNG V2 1300 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.

1Code Foils Kanga Series Front Wing 1600no outline3AFS Enduro GLT Front Wing 1600no outline4F-One JAM HM Carbon 1600no outlineSpecs · table ↓

Duotone Aero Glide SLS 1595 · 1,300 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ Axis PNG V2 1300 · 1,300 mm

The Aero Glide SLS has run 6 sizes, 725–2,145 cm², including discontinued sizes; aspect ratio moves 9.3–10.6 across the range.

Its 1,300 mm span is 13% wider than typical for the area — the median across the 78 current wings within 10% of its size is 1,155 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Duotone Aero Glide SLS 1595, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
Code Foils	Kanga Series Front Wing 1600	1,600	+0.3%	10.60	+0.0%	1,300	High aspect
Axis	PNG V2 1300	1,632	+2.3%	10.36	-2.3%	1,300	High aspect
AFS	Enduro GLT Front Wing 1600	1,600	+0.3%	11.00	+3.8%	1,323	High aspect
F-One	JAM HM Carbon 1600	1,600	+0.3%	10.20	-3.8%	1,280	High aspect
GONG	Sirus V3 Atmo XL (Team / Carbon HM)	1,650	+3.4%	11.00	+3.8%	1,350	High aspect
GONG	Trail V3 Atmo XL (Team / Carbon HM)	1,650	+3.4%	10.10	-4.7%	1,290	High aspect

Specifications

Every figure is Duotone's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Aero Glide
Size	1595
Area, cm²	1,595
Area basis	unknown
Span, mm	1,300
Chord, mm	—
Aspect ratio	10.60
Band	High aspect
Brand’s category	Glide / high aspect
Disciplines	wing, downwind, pump
Construction	SLS
Model year	2024
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
