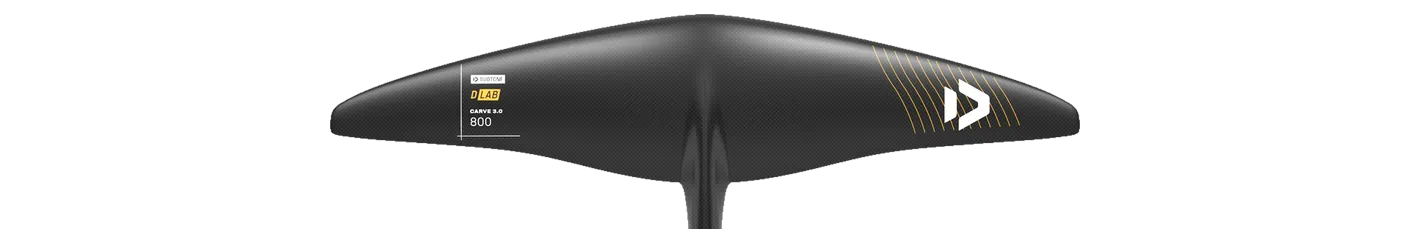

Duotone Carve 3.0 D/LAB 800 hydrofoil front wing: 800 cm², 750 mm span, aspect ratio 7.00, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Duotone's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Lift Foils | 121 Havoc Front Wing 121 | 774 | -3.2% | 7.00 | +0.0% | 737 | C2 Mid-low aspect |
| Axis | Spitfire Spitfire 720 | 815 | +1.9% | 6.47 | -7.6% | 720 | C2 Mid-low aspect |
| Takoon | XS-Glide Front Wing 820 | 820 | +2.5% | 7.50 | +7.1% | 786 | C2 Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 840 | 840 | +5.0% | 7.50 | +7.1% | 795 | C2 Mid-low aspect |
| F-One | PHANTOM S Carbon PHANTOM-S 840 | 840 | +5.0% | 6.50 | -7.1% | 740 | C2 Mid-low aspect |
| Family | Carve |
|---|---|
| Size | 800 |
| Area, cm² | 800 |
| Area basis | unknown |
| Span, mm | 750 |
| Chord, mm | — |
| Aspect ratio | 7.00 |
| Band | C2 Mid-low aspect |
| Brand files it under | Surf / carve |
| Disciplines | wing, prone, kite |
| Construction | D/LAB |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Duotone on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
