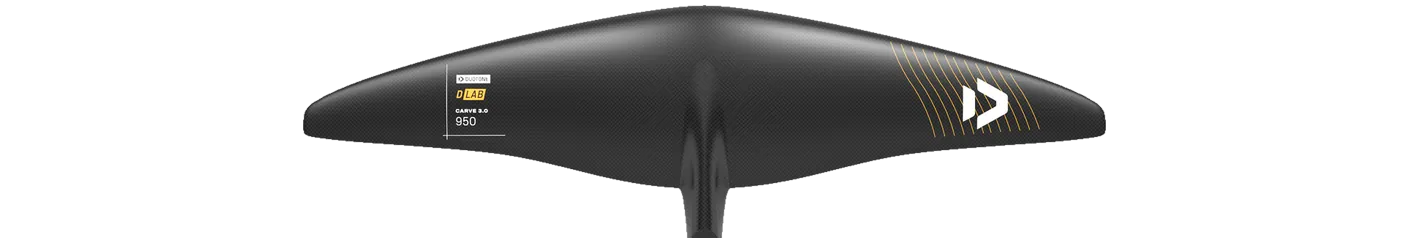

Duotone Carve 3.0 D/LAB 950
- 950area, cm²
- 810span, mm
- 6.90aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Carve Brand’s category Surf / carve Disciplines wing, prone, kite D/LAB · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Lift Foils 148 Havoc Front Wing, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Carve 3.0 D/LAB runs 5 sizes, 500–1,100 cm²; aspect ratio moves 6.7–7.4 across the range.
Its 810 mm span is 12% narrower than typical for the area — the median across the 116 current wings within 10% of its size is 925 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Lift Foils | 148 Havoc Front Wing | 955 | +0.5% | 7.10 | +2.9% | 826 | Mid-low aspect |
| F-One | PHANTOM S Carbon PHANTOM-S 940 | 940 | -1.1% | 6.50 | -5.8% | 780 | Mid-low aspect |
| RRD | Blaze LTE Front Wing Y30 950 | 950 | +0.0% | 6.50 | -5.8% | 790 | Mid-low aspect |
| Sabfoil | Sea Devil 780 Blackbird | 950 | +0.0% | 6.40 | -7.2% | 780 | Mid-low aspect |
Specifications
| Family | Carve |
|---|---|
| Size | 950 |
| Area, cm² | 950 |
| Area basis | unknown |
| Span, mm | 810 |
| Chord, mm | — |
| Aspect ratio | 6.90 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone, kite |
| Construction | D/LAB |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
