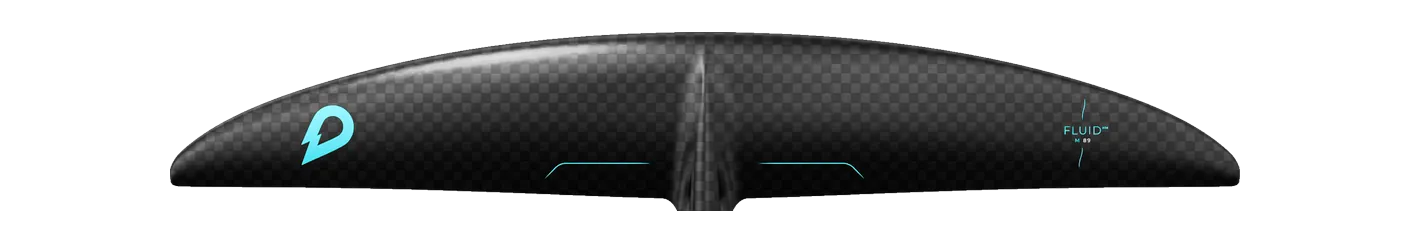

GONG Fluid V3 Atmo XXL (Team / Carbon HM)
- 1,310area, cm²
- 1,070span, mm
- 8.70aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Fluid Chord 165 mm Brand’s category Surf / carve Disciplines wing, prone, sup, kite Team / Carbon HM · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Slingshot One-Lock Glide 1325, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Fluid V3 Atmo runs 9 sizes, 510–1,460 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,070 mm span is 2% wider than typical for the area — the median across the 105 current wings within 10% of its size is 1,050 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Glide 1325 | 1,325 | +1.1% | 8.90 | +2.3% | 1,099 | Mid aspect |
| Sroka | S-Foil 1350 L HA | 1,350 | +3.1% | 9.00 | +3.4% | 1,100 | Mid aspect |
| Axis | Spitfire 1030 | 1,308 | -0.2% | 8.26 | -5.1% | 1,030 | Mid-low aspect |
| Cabrinha | Fusion H-Series MkII H1300 | 1,300 | -0.8% | 9.14 | +5.1% | 1,090 | Mid aspect |
| ENSIS | STRIDE ACE Front Wing 1360 | 1,360 | +3.8% | 8.90 | +2.3% | 1,100 | Mid aspect |
| ENSIS | FLOW ACE Front Wing 1260 | 1,260 | -3.8% | 8.14 | -6.4% | 1,013 | Mid-low aspect |
| Takuma | Kujira II Front Wing 1250 | 1,250 | -4.6% | 8.30 | -4.6% | 1,018 | Mid-low aspect |
Specifications
| Family | Fluid |
|---|---|
| Size | XXL |
| Area, cm² | 1,310 |
| Area basis | unknown |
| Span, mm | 1,070 |
| Chord, mm | 165 |
| Aspect ratio | 8.70 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone, sup, kite |
| Construction | Team / Carbon HM |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
