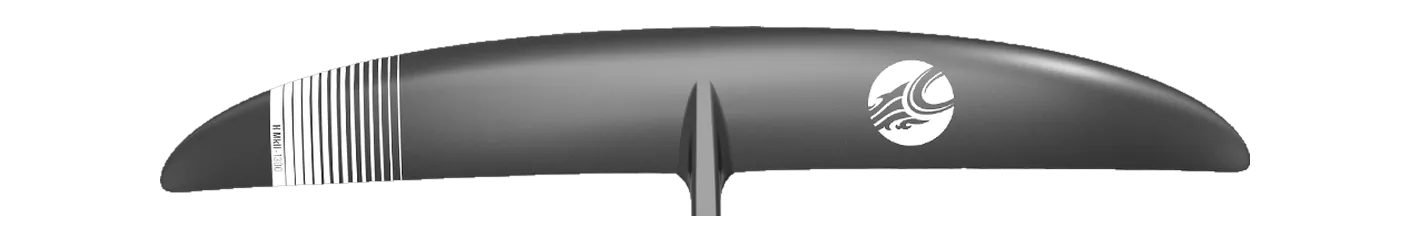

Cabrinha Fusion H-Series MkII H1300
- 1,300area, cm²
- 1,090span, mm
- 9.14aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Fusion H-Series Chord 150 mm Brand’s category Glide / high aspect Disciplines wing, kite, prone, race carbon (prepreg) · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Slingshot One-Lock Glide 1325 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Fusion H-Series MkII runs 7 sizes, 550–1,300 cm², and changes proportion as it grows: aspect ratio runs 8.1 at one end of the range to 9.9 at the other, so its sizes differ in shape as well as in area.
Its 1,090 mm span is 5% wider than typical for the area — the median across the 104 current wings within 10% of its size is 1,040 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Unifoil | Evolution 205 | 1,323 | +1.8% | 9.40 | +2.8% | 1,113 | Mid aspect |
| Slingshot | One-Lock Glide 1325 | 1,325 | +1.9% | 8.90 | -2.6% | 1,099 | Mid aspect |
| Code Foils | S Series Front Wing 1300S | 1,300 | +0.0% | 9.50 | +3.9% | 1,115 | Mid aspect |
| F-One | EAGLE HM Carbon 1290 | 1,290 | -0.8% | 9.50 | +3.9% | 1,105 | Mid aspect |
| GONG | Fluid V3 Atmo XXL (Team / Carbon HM) | 1,310 | +0.8% | 8.70 | -4.8% | 1,070 | Mid aspect |
| Sroka | S-Foil 1350 L HA | 1,350 | +3.8% | 9.00 | -1.5% | 1,100 | Mid aspect |
| ENSIS | STRIDE ACE Front Wing 1360 | 1,360 | +4.6% | 8.90 | -2.6% | 1,100 | Mid aspect |
| Naish | Jet HA Front Wing 1240 | 1,240 | -4.6% | 8.60 | -5.9% | 1,030 | Mid aspect |
Specifications
| Family | Fusion H-Series |
|---|---|
| Size | H1300 |
| Area, cm² | 1,300 |
| Area basis | unknown |
| Span, mm | 1,090 |
| Chord, mm | 150 |
| Aspect ratio | 9.14 |
| Band | Mid aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, kite, prone, race |
| Construction | carbon (prepreg) |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
