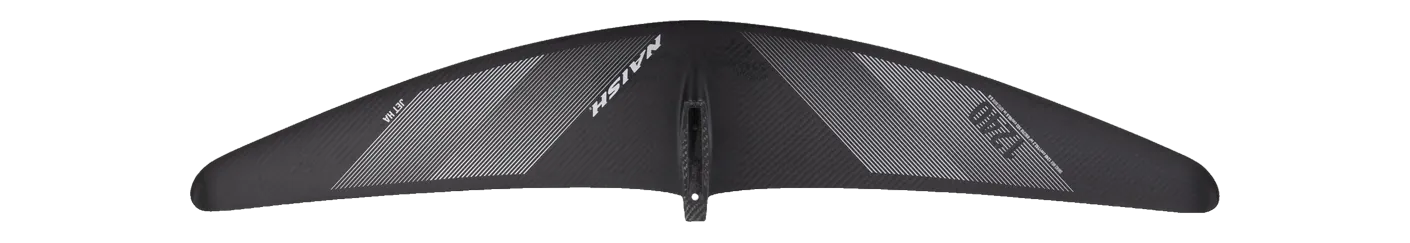

Naish Jet HA Front Wing 1240
- 1,240area, cm²
- 1,030span, mm
- 8.60aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Jet HA Area basis projected Brand’s category Glide / high aspect Disciplines wing, prone, sup, downwind, kite carbon/glass composite · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Curve H V3 FG XL, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Jet HA Front Wing runs 7 sizes, 640–1,840 cm², and changes proportion as it grows: aspect ratio runs 6.8 at one end of the range to 10.2 at the other, so its sizes differ in shape as well as in area.
Its 1,030 mm span is typical for the area: the median across the 109 current wings within 10% of its size is 1,030 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Curve H V3 FG XL | 1,220 | -1.6% | 8.40 | -2.3% | 1,010 | Mid-low aspect |
| Takuma | Kujira II Front Wing 1250 | 1,250 | +0.8% | 8.30 | -3.5% | 1,018 | Mid-low aspect |
| Sabfoil | Blackbird 965 Balz Muller Signature | 1,210 | -2.4% | 8.30 | -3.5% | 965 | Mid-low aspect |
| Duotone | Crest D/LAB 1200 | 1,200 | -3.2% | 8.60 | +0.0% | 1,020 | Mid aspect |
| Duotone | Whizz SLS 1200 | 1,200 | -3.2% | 8.20 | -4.7% | 990 | Mid-low aspect |
| Takoon | Flare Front Wing 1200 | 1,200 | -3.2% | 8.50 | -1.2% | 1,015 | Mid-low aspect |
| ENSIS | FLOW ACE Front Wing 1260 | 1,260 | +1.6% | 8.14 | -5.3% | 1,013 | Mid-low aspect |
| Code Foils | X Series Front Wing 1195X | 1,195 | -3.6% | 8.20 | -4.7% | 987 | Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1190 | 1,190 | -4.0% | 8.00 | -7.0% | 990 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1200 | 1,200 | -3.2% | 8.00 | -7.0% | 980 | Mid-low aspect |
| Cabrinha | Fusion H-Series MkII H1300 | 1,300 | +4.8% | 9.14 | +6.3% | 1,090 | Mid aspect |
| F-One | SEVEN SEAS Carbon 1300 | 1,300 | +4.8% | 8.00 | -7.0% | 1,020 | Mid-low aspect |
Specifications
| Family | Jet HA |
|---|---|
| Size | Jet HA 1240 |
| Area, cm² | 1,240 |
| Area basis | projected |
| Span, mm | 1,030 |
| Chord, mm | — |
| Aspect ratio | 8.60 |
| Band | Mid aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, sup, downwind, kite |
| Construction | carbon/glass composite |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
