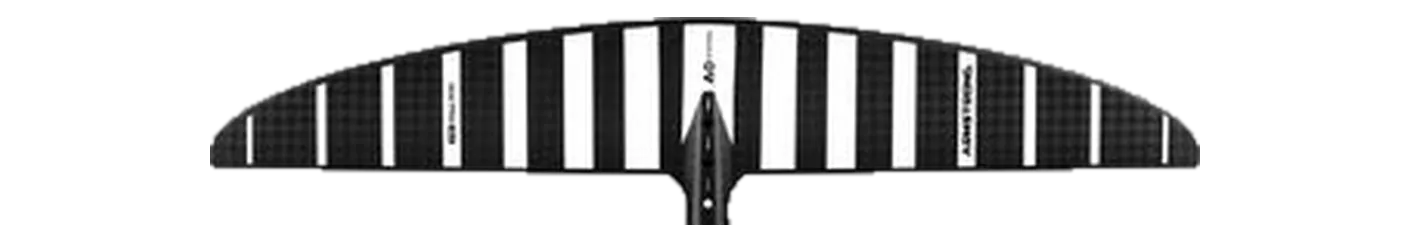

Armstrong MA Mk II (Mid Aspect) MA1190
- 1,190area, cm²
- 990span, mm
- 8.00aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family MA Mk II Brand’s category Surf / carve Disciplines wing, prone carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the F-One SEVEN SEAS Carbon 1200, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The MA Mk II runs 8 sizes, 490–1,390 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 990 mm span is 2% narrower than typical for the area — the median across the 119 current wings within 10% of its size is 1,010 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | SEVEN SEAS Carbon 1200 | 1,200 | +0.8% | 8.00 | +0.0% | 980 | Mid-low aspect |
| Axis | Spitfire 960 | 1,196 | +0.5% | 7.84 | -2.0% | 960 | Mid-low aspect |
| Code Foils | X Series Front Wing 1195X | 1,195 | +0.4% | 8.20 | +2.5% | 987 | Mid-low aspect |
| Duotone | Whizz SLS 1200 | 1,200 | +0.8% | 8.20 | +2.5% | 990 | Mid-low aspect |
| Sabfoil | Blackbird 965 Balz Muller Signature | 1,210 | +1.7% | 8.30 | +3.8% | 965 | Mid-low aspect |
| Naish | Siren MA Front Wing 1200 | 1,200 | +0.8% | 8.33 | +4.1% | 1,000 | Mid-low aspect |
| GONG | Curve H V3 FG XL | 1,220 | +2.5% | 8.40 | +5.0% | 1,010 | Mid-low aspect |
| GONG | Fluid H V3 FG XL | 1,160 | -2.5% | 8.40 | +5.0% | 990 | Mid-low aspect |
| F-One | SK8 HM Carbon (T2) 1150 | 1,150 | -3.4% | 8.00 | +0.0% | 960 | Mid-low aspect |
| Sabfoil | 969 Balz Muller Limited Müller | 1,230 | +3.4% | 7.80 | -2.5% | 969 | Mid-low aspect |
| Sroka | S-Foil 1190 L HA | 1,190 | +0.0% | 7.50 | -6.2% | 910 | Mid-low aspect |
| Takoon | Flare Front Wing 1200 | 1,200 | +0.8% | 8.50 | +6.2% | 1,015 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 1140 | 1,140 | -4.2% | 7.50 | -6.2% | 925 | Mid-low aspect |
| Duotone | Crest D/LAB 1200 | 1,200 | +0.8% | 8.60 | +7.5% | 1,020 | Mid aspect |
| Naish | Jet HA Front Wing 1240 | 1,240 | +4.2% | 8.60 | +7.5% | 1,030 | Mid aspect |
Specifications
| Family | MA Mk II |
|---|---|
| Size | MA1190 |
| Area, cm² | 1,190 |
| Area basis | unknown |
| Span, mm | 990 |
| Chord, mm | — |
| Aspect ratio | 8.00 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
