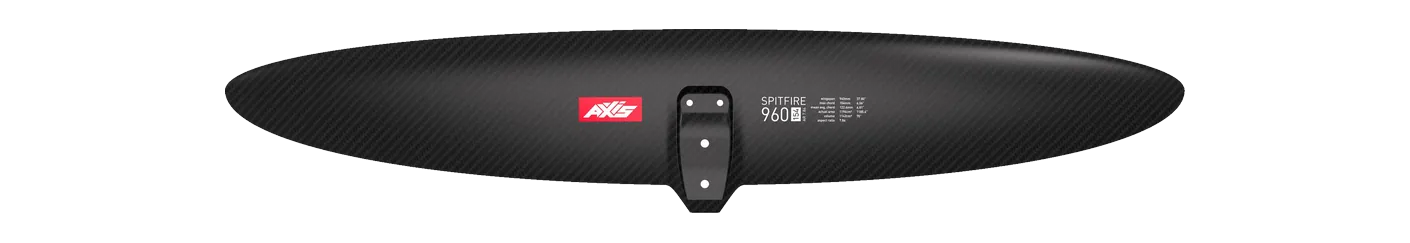

Axis Spitfire 960
- 1,196area, cm²
- 960span, mm
- 7.84aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Spitfire Area basis flat Chord 154 mm Brand’s category Surf / carve Disciplines prone carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Armstrong MA Mk II (Mid Aspect) MA1190, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Spitfire runs 10 sizes, 628–1,554 cm², and changes proportion as it grows: aspect ratio runs 6.1 at one end of the range to 9.1 at the other, so its sizes differ in shape as well as in area.
Its 960 mm span is 5% narrower than typical for the area — the median across the 120 current wings within 10% of its size is 1,013 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | MA Mk II (Mid Aspect) MA1190 | 1,190 | -0.5% | 8.00 | +2.0% | 990 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1200 | 1,200 | +0.3% | 8.00 | +2.0% | 980 | Mid-low aspect |
| Sroka | S-Foil 1190 L HA | 1,190 | -0.5% | 7.50 | -4.3% | 910 | Mid-low aspect |
| Sabfoil | 969 Balz Muller Limited Müller | 1,230 | +2.8% | 7.80 | -0.5% | 969 | Mid-low aspect |
| Code Foils | X Series Front Wing 1195X | 1,195 | -0.1% | 8.20 | +4.6% | 987 | Mid-low aspect |
| Duotone | Whizz SLS 1200 | 1,200 | +0.3% | 8.20 | +4.6% | 990 | Mid-low aspect |
| Sabfoil | Blackbird 965 Balz Muller Signature | 1,210 | +1.2% | 8.30 | +5.9% | 965 | Mid-low aspect |
| F-One | SK8 HM Carbon (T2) 1150 | 1,150 | -3.8% | 8.00 | +2.0% | 960 | Mid-low aspect |
| Naish | Siren MA Front Wing 1200 | 1,200 | +0.3% | 8.33 | +6.3% | 1,000 | Mid-low aspect |
| GONG | Curve H V3 FG XL | 1,220 | +2.0% | 8.40 | +7.1% | 1,010 | Mid-low aspect |
| GONG | Fluid H V3 FG XL | 1,160 | -3.0% | 8.40 | +7.1% | 990 | Mid-low aspect |
| AFS | Evo Front Wing 1250 | 1,250 | +4.5% | 7.60 | -3.1% | 970 | Mid-low aspect |
| Takuma | Kujira II Front Wing 1250 | 1,250 | +4.5% | 8.30 | +5.9% | 1,018 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 1140 | 1,140 | -4.7% | 7.50 | -4.3% | 925 | Mid-low aspect |
Specifications
| Family | Spitfire |
|---|---|
| Size | Spitfire 960 |
| Area, cm² | 1,196 |
| Area basis | flat |
| Span, mm | 960 |
| Chord, mm | 154 |
| Aspect ratio | 7.84 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
