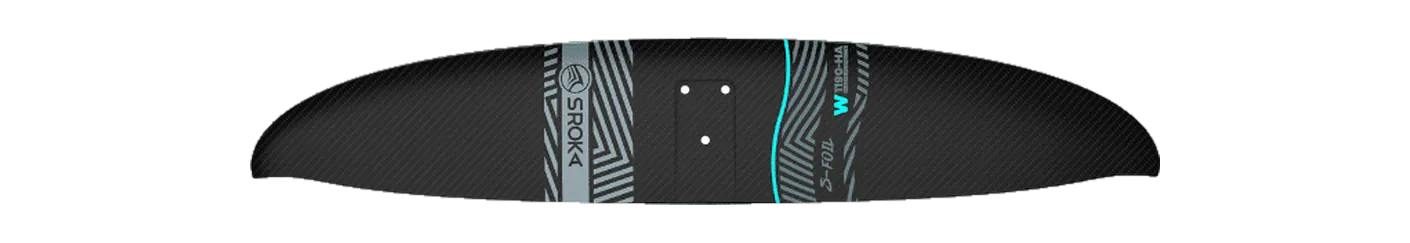

Sroka S-Foil 1190 L HA
- 1,190area, cm²
- 910span, mm
- 7.50aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family S-Foil High Aspect (HA) Chord 165 mm Brand’s category Glide / high aspect Disciplines wing, race, kite, tow, sup, pump high-modulus carbon (Carbon HM) · 2024-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Axis HPS (High Performance Speed) 930, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The S-Foil High Aspect runs 6 sizes, 550–1,350 cm²; aspect ratio moves 7.5–9.0 across the range.
Its 910 mm span is 10% narrower than typical for the area — the median across the 119 current wings within 10% of its size is 1,010 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Axis | HPS (High Performance Speed) 930 | 1,214 | +2.0% | 7.34 | -2.1% | 930 | Mid-low aspect |
| Axis | Spitfire 960 | 1,196 | +0.5% | 7.84 | +4.5% | 960 | Mid-low aspect |
| North | Sonar SF1230 | 1,230 | +3.4% | 7.10 | -5.3% | 930 | Mid-low aspect |
| Sabfoil | 969 Balz Muller Limited Müller | 1,230 | +3.4% | 7.80 | +4.0% | 969 | Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1190 | 1,190 | +0.0% | 8.00 | +6.7% | 990 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1200 | 1,200 | +0.8% | 8.00 | +6.7% | 980 | Mid-low aspect |
| F-One | SK8 HM Carbon (T2) 1150 | 1,150 | -3.4% | 8.00 | +6.7% | 960 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 1140 | 1,140 | -4.2% | 7.50 | +0.0% | 925 | Mid-low aspect |
Specifications
| Family | S-Foil High Aspect (HA) |
|---|---|
| Size | 1190 L HA |
| Area, cm² | 1,190 |
| Area basis | unknown |
| Span, mm | 910 |
| Chord, mm | 165 |
| Aspect ratio | 7.50 |
| Band | Mid-low aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, race, kite, tow, sup, pump |
| Construction | high-modulus carbon (Carbon HM) |
| Model year | 2024-2026 |
| Source | manufacturer |
The brand publishes this aspect ratio, but its own span and area (span² ÷ area) give a figure 5–10% away. The published number is kept and marked.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
