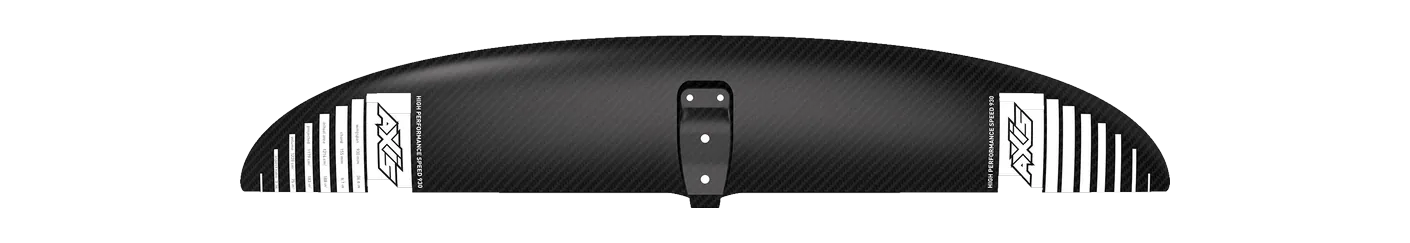

Axis HPS (High Performance Speed) HPS 930 hydrofoil front wing: 1,214 cm², 930 mm span, aspect ratio 7.34, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sroka | S-Foil 1190 L HA 1190 L HA | 1,190 | -2.0% | 7.50 | +2.2% | 910 | C2 Mid-low aspect |
| North | Sonar SF1230 SF1230 | 1,230 | +1.3% | 7.10 | -3.3% | 930 | C2 Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1250 | 1,250 | +3.0% | 7.20 | -1.9% | 950 | C2 Mid-low aspect |
| AFS | Evo Front Wing 1250 | 1,250 | +3.0% | 7.60 | +3.5% | 970 | C2 Mid-low aspect |
| Sabfoil | 969 Balz Muller Limited 969 Balz Müller Limited | 1,230 | +1.3% | 7.80 | +6.3% | 969 | C2 Mid-low aspect |
| Family | HPS |
|---|---|
| Size | HPS 930 |
| Area, cm² | 1,214 |
| Area basis | flat |
| Span, mm | 930 |
| Chord, mm | 155 |
| Aspect ratio | 7.34 |
| Band | C2 Mid-low aspect |
| Brand files it under | All-round / freeride |
| Disciplines | wing, downwind, prone, sup, kite, pump, wake |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
