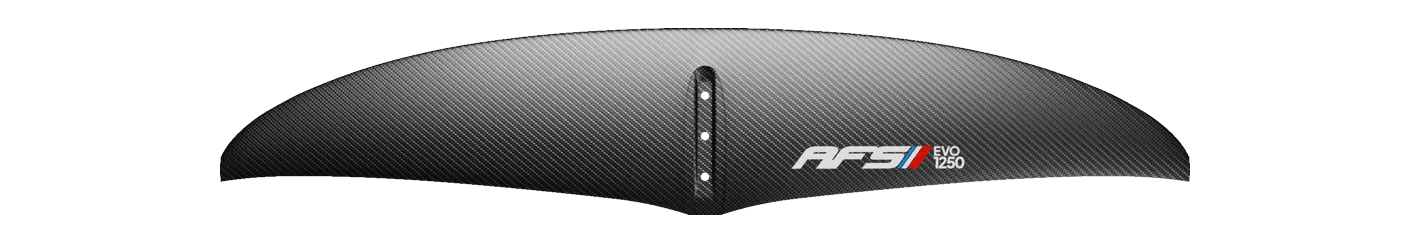

AFS Evo Front Wing 1250
- 1,250area, cm²
- 970span, mm
- 7.60aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family EVO Chord 185 mm Brand’s category All-round / freeride Disciplines wing, sup HR Carbon / Corecell · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Sabfoil 969 Balz Muller Limited Müller, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Evo Front Wing runs 4 sizes, 950–1,650 cm²; aspect ratio moves 7.5–8.1 across the range.
Its 970 mm span is 6% narrower than typical for the area — the median across the 109 current wings within 10% of its size is 1,035 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sabfoil | 969 Balz Muller Limited Müller | 1,230 | -1.6% | 7.80 | +2.6% | 969 | Mid-low aspect |
| Axis | HPS (High Performance Speed) 930 | 1,214 | -2.9% | 7.34 | -3.4% | 930 | Mid-low aspect |
| Unifoil | Progression 200 | 1,290 | +3.2% | 7.90 | +3.9% | 1,010 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1250 | 1,250 | +0.0% | 7.20 | -5.3% | 950 | Mid-low aspect |
| Duotone | Free 2.0 1300 | 1,300 | +4.0% | 7.20 | -5.3% | 970 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1200 | 1,200 | -4.0% | 8.00 | +5.3% | 980 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1300 | 1,300 | +4.0% | 8.00 | +5.3% | 1,020 | Mid-low aspect |
| KT Foiling | Instinct 1300 | 1,300 | +4.0% | 7.16 | -5.8% | 965 | Mid-low aspect |
| North | Sonar SF1230 | 1,230 | -1.6% | 7.10 | -6.6% | 930 | Mid-low aspect |
| Axis | Spitfire 960 | 1,196 | -4.3% | 7.84 | +3.2% | 960 | Mid-low aspect |
| ENSIS | FLOW ACE Front Wing 1260 | 1,260 | +0.8% | 8.14 | +7.1% | 1,013 | Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1190 | 1,190 | -4.8% | 8.00 | +5.3% | 990 | Mid-low aspect |
| Sroka | S-Foil 1190 L HA | 1,190 | -4.8% | 7.50 | -1.3% | 910 | Mid-low aspect |
| Code Foils | X Series Front Wing 1195X | 1,195 | -4.4% | 8.20 | +7.9% | 987 | Mid-low aspect |
| Duotone | Whizz SLS 1200 | 1,200 | -4.0% | 8.20 | +7.9% | 990 | Mid-low aspect |
| GONG | Ascent V3 XL | 1,290 | +3.2% | 7.00 | -7.9% | 950 | Mid-low aspect |
Specifications
| Family | EVO |
|---|---|
| Size | 1250 |
| Area, cm² | 1,250 |
| Area basis | unknown |
| Span, mm | 970 |
| Chord, mm | 185 |
| Aspect ratio | 7.60 |
| Band | Mid-low aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, sup |
| Construction | HR Carbon / Corecell |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
