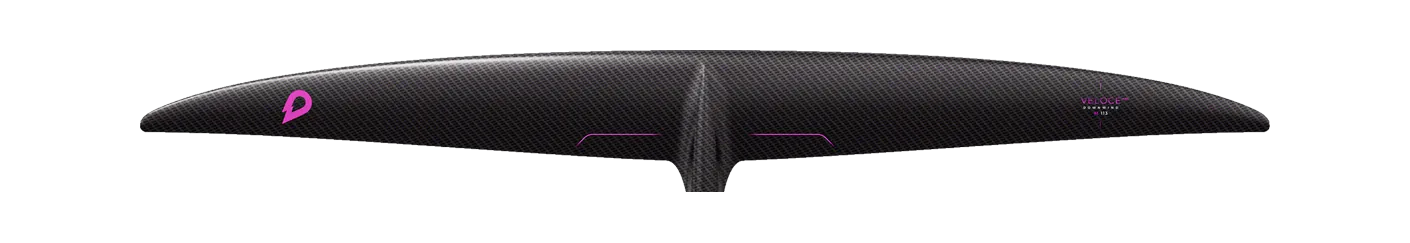

GONG Veloce DW V3 Atmo M
- 900area, cm²
- 1,130span, mm
- 14.10aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family Veloce Chord 111 mm Brand’s category Downwind Disciplines downwind, wing, parawing Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Duotone Hyperglide D/LAB 880 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Veloce DW V3 Atmo runs 5 sizes, 600–1,200 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,130 mm span is 27% wider than typical for the area — the median across the 131 current wings within 10% of its size is 890 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Ultra Front Wing 900 | 900 | +0.0% | 14.00 | -0.7% | 1,120 | Very high aspect |
| Duotone | Hyperglide D/LAB 880 | 880 | -2.2% | 14.20 | +0.7% | 1,130 | Very high aspect |
| RRD | Flying Fish HA Front Wing Y31 900 | 900 | +0.0% | 14.70 | +4.3% | 1,150 | Very high aspect |
| KT Foiling | Solus 930 | 930 | +3.3% | 14.00 | -0.7% | 1,140 | Very high aspect |
| Unifoil | Quest 135 | 870 | -3.3% | 13.40 | -5.0% | 1,078 | Very high aspect |
| Levitaz | Front Wing FS 900 | 900 | +0.0% | 13.30 | -5.7% | 1,100 | Very high aspect |
| Axis | Fireball ULTRA 1070 | 877 | -2.6% | 13.07 | -7.3% | 1,070 | Very high aspect |
| Armstrong | DWP (Downwind Performance) DWP930 | 930 | +3.3% | 13.00 | -7.8% | 1,100 | Very high aspect |
| Code Foils | R Series Front Wing 860R | 860 | -4.4% | 13.00 | -7.8% | 1,050 | Very high aspect |
| North | Sonar DW900 | 900 | +0.0% | 13.00 | -7.8% | 1,080 | Very high aspect |
Specifications
| Family | Veloce |
|---|---|
| Size | M |
| Area, cm² | 900 |
| Area basis | unknown |
| Span, mm | 1,130 |
| Chord, mm | 111 |
| Aspect ratio | 14.10 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, wing, parawing |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
