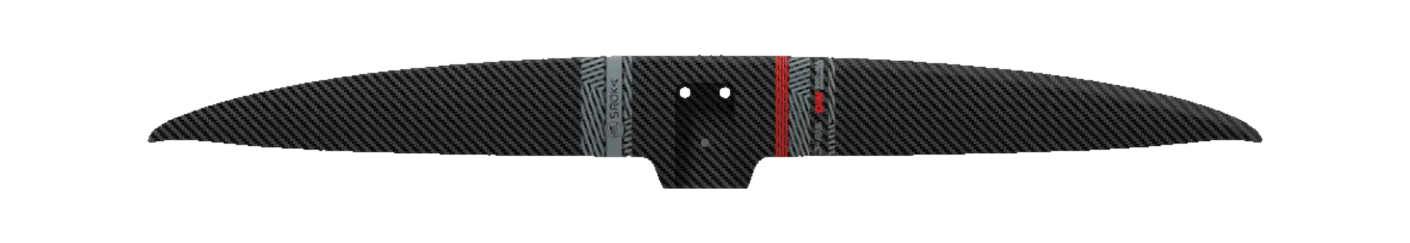

Sroka S-Foil DW 900
- 900area, cm²
- 1,120span, mm
- 14.00aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family DW Chord 104 mm Brand’s category Downwind Disciplines downwind, wing, sup carbon prepreg high-modulus (Carbone Prepreg Haut Module)
Its 1,120 mm span is 25% wider than typical for the area — the median across the 144 current wings within 10% of its size is 897 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Ultra Front Wing 900 | 900 | +0.0% | 14.00 | +0.0% | 1,120 | Very high aspect |
| GONG | Veloce DW V3 Atmo M | 900 | +0.0% | 14.10 | +0.7% | 1,130 | Very high aspect |
| Duotone | Hyperglide D/LAB 880 | 880 | -2.2% | 14.20 | +1.4% | 1,130 | Very high aspect |
| GONG | Veloce HDW V3 M | 900 | +0.0% | 13.30 | -5.0% | 1,090 | Very high aspect |
| Levitaz | Front Wing FS 900 | 900 | +0.0% | 13.30 | -5.0% | 1,100 | Very high aspect |
| RRD | Flying Fish HA Front Wing Y31 900 | 900 | +0.0% | 14.70 | +5.0% | 1,150 | Very high aspect |
| KT Foiling | Solus 930 | 930 | +3.3% | 14.00 | +0.0% | 1,140 | Very high aspect |
| Unifoil | Quest 135 | 870 | -3.3% | 13.40 | -4.3% | 1,078 | Very high aspect |
| Axis | Fireball ULTRA 1070 | 877 | -2.6% | 13.07 | -6.6% | 1,070 | Very high aspect |
| Armstrong | DWP (Downwind Performance) DWP930 | 930 | +3.3% | 13.00 | -7.1% | 1,100 | Very high aspect |
| Code Foils | R Series Front Wing 860R | 860 | -4.4% | 13.00 | -7.1% | 1,050 | Very high aspect |
| North | Sonar DW900 | 900 | +0.0% | 13.00 | -7.1% | 1,080 | Very high aspect |
| Naish | SHA Foil Front Wing 933 | 933 | +3.7% | 12.97 | -7.4% | 1,100 | Very high aspect |
Specifications
| Family | DW |
|---|---|
| Size | DW 900 |
| Area, cm² | 900 |
| Area basis | unknown |
| Span, mm | 1,120 |
| Chord, mm | 104 |
| Aspect ratio | 14.00 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, wing, sup |
| Construction | carbon prepreg high-modulus (Carbone Prepreg Haut Module) |
| Model year | — |
| Source | manufacturer · read 2026-10-05 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
