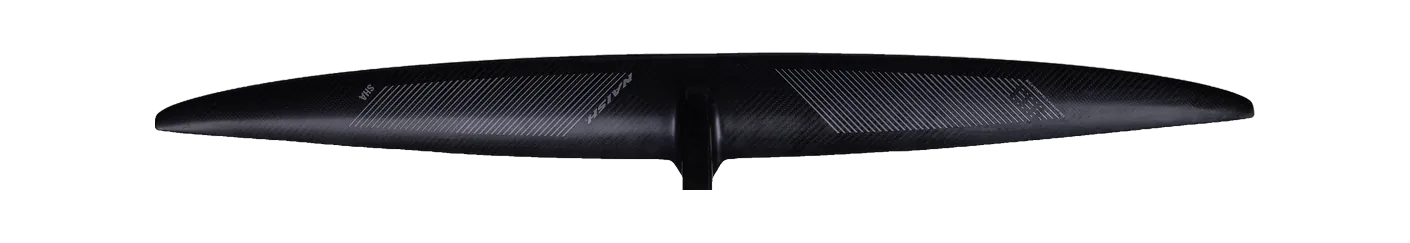

Naish SHA Foil Front Wing 933
- 933area, cm²
- 1,100span, mm
- 12.97aspect ratio
- Very highaspect · AR 11.5 – 15.0
Family SHA Area basis projected Brand’s category Downwind Disciplines downwind, sup, wing, pump 100% prepreg 3K carbon, dual expansion core · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Armstrong DWP (Downwind Performance) DWP930, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The SHA Foil Front Wing runs 3 sizes, 733–1,133 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,100 mm span is 22% wider than typical for the area — the median across the 132 current wings within 10% of its size is 900 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Armstrong | DWP (Downwind Performance) DWP930 | 930 | -0.3% | 13.00 | +0.2% | 1,100 | Very high aspect |
| Code Foils | R Series Front Wing 960R | 960 | +2.9% | 13.00 | +0.2% | 1,115 | Very high aspect |
| GONG | Veloce HDW V3 M | 900 | -3.5% | 13.30 | +2.5% | 1,090 | Very high aspect |
| GONG | Veloce Light Wind (LW) V3 Atmo M | 900 | -3.5% | 12.70 | -2.1% | 1,070 | Very high aspect |
| Levitaz | Front Wing FS 900 | 900 | -3.5% | 13.30 | +2.5% | 1,100 | Very high aspect |
| North | Sonar DW900 | 900 | -3.5% | 13.00 | +0.2% | 1,080 | Very high aspect |
| Armstrong | UHA (Ultra High Aspect) UHA970 | 970 | +4.0% | 12.60 | -2.9% | 1,106 | Very high aspect |
| Axis | ART PRO 1051 | 932 | -0.1% | 12.05 | -7.1% | 1,051 | Very high aspect |
| F-One | EAGLE X UHM Carbon 900 | 900 | -3.5% | 12.00 | -7.5% | 1,040 | Very high aspect |
| AFS | Ultra Front Wing 900 | 900 | -3.5% | 14.00 | +7.9% | 1,120 | Very high aspect |
| KT Foiling | Solus 930 | 930 | -0.3% | 14.00 | +7.9% | 1,140 | Very high aspect |
Specifications
| Family | SHA |
|---|---|
| Size | SHA 933 |
| Area, cm² | 933 |
| Area basis | projected |
| Span, mm | 1,100 |
| Chord, mm | — |
| Aspect ratio | 12.97 |
| Band | Very high aspect |
| Brand’s category | Downwind |
| Disciplines | downwind, sup, wing, pump |
| Construction | 100% prepreg 3K carbon, dual expansion core |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
