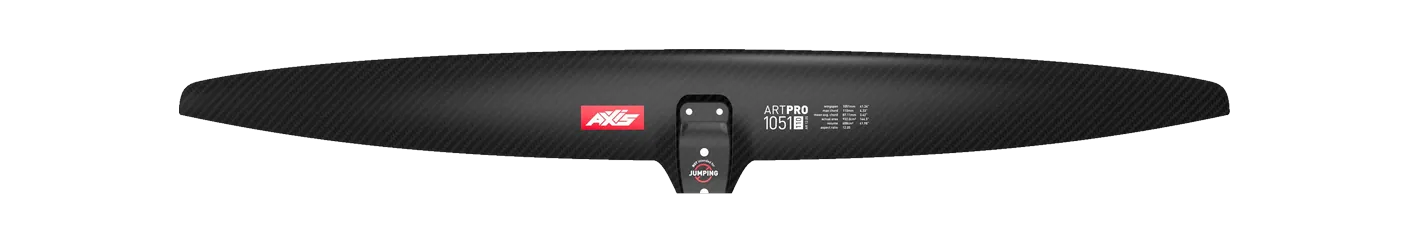

Axis ART PRO ART PRO 1051 hydrofoil front wing: 932 cm², 1,051 mm span, aspect ratio 12.05, with its closest equivalents from other brands within ±5% area and ±8% aspect ratio. Figures from Axis's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | EAGLE X UHM Carbon EAGLE X 900 | 900 | -3.4% | 12.00 | -0.4% | 1,040 | C5 Very high aspect |
| Sabfoil | Leviathan PRO 1060 Leviathan PRO 1060 | 947 | +1.6% | 11.53 | -4.3% | 1,060 | C5 Very high aspect |
| Naish | SHA Foil Front Wing SHA 933 | 933 | +0.1% | 12.97 | +7.6% | 1,100 | C5 Very high aspect |
| Armstrong | DWP (Downwind Performance) DWP930 | 930 | -0.2% | 13.00 | +7.9% | 1,100 | C5 Very high aspect |
| Armstrong | UHA (Ultra High Aspect) UHA970 | 970 | +4.1% | 12.60 | +4.6% | 1,106 | C5 Very high aspect |
| GONG | Veloce Light Wind (LW) V3 Atmo M | 900 | -3.4% | 12.70 | +5.4% | 1,070 | C5 Very high aspect |
| Code Foils | R Series Front Wing 960R | 960 | +3.0% | 13.00 | +7.9% | 1,115 | C5 Very high aspect |
| North | Sonar DW900 DW900 | 900 | -3.4% | 13.00 | +7.9% | 1,080 | C5 Very high aspect |
| Family | ART PRO |
|---|---|
| Size | ART PRO 1051 |
| Area, cm² | 932 |
| Area basis | flat |
| Span, mm | 1,051 |
| Chord, mm | 110 |
| Aspect ratio | 12.05 |
| Band | C5 Very high aspect |
| Brand files it under | Glide / high aspect |
| Disciplines | — |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Axis on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
