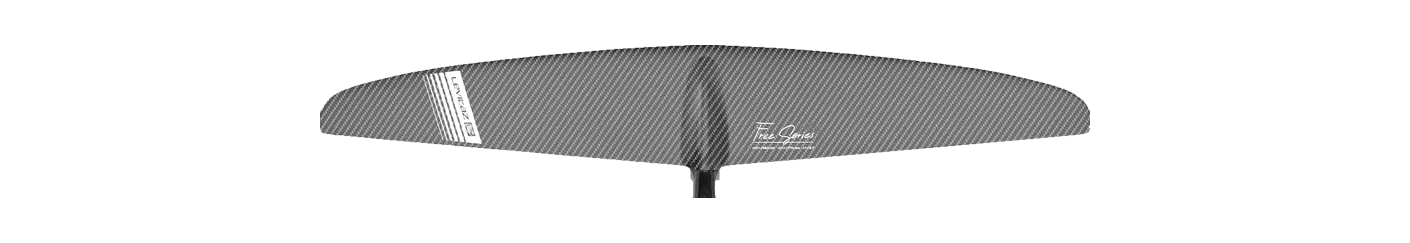

Levitaz Front Wing FS 680
- 680area, cm²
- 770span, mm
- 8.70aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Free Series Brand’s category All-round / freeride Disciplines wing, kite, prone HM carbon with integrated titanium interface · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG Ypra Slalom V3 Atmo S, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Free Series runs 4 sizes, 540–900 cm², and changes proportion as it grows: aspect ratio runs 8.4 at one end of the range to 13.3 at the other, so its sizes differ in shape as well as in area.
Its 770 mm span is typical for the area: the median across the 102 current wings within 10% of its size is 780 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| GONG | Ypra Slalom V3 Atmo S | 700 | +2.9% | 8.90 | +2.3% | 790 | Mid aspect |
| KT Foiling | Nomad 700 | 700 | +2.9% | 8.70 | +0.0% | 780 | Mid aspect |
| Sabfoil | Medusa PRO 769 | 700 | +2.9% | 8.44 | -3.0% | 769 | Mid-low aspect |
| Code Foils | X Series Front Wing 700X | 700 | +2.9% | 8.20 | -5.7% | 755 | Mid-low aspect |
| North | Sonar SF680 | 680 | +0.0% | 9.20 | +5.7% | 790 | Mid aspect |
| Unifoil | Aggression 105 | 677 | -0.4% | 8.10 | -6.9% | 740 | Mid-low aspect |
| Duotone | Crest D/LAB 675 | 675 | -0.7% | 9.30 | +6.9% | 790 | Mid aspect |
| AFS | Silk V2 Front Wing 650 | 650 | -4.4% | 9.00 | +3.4% | 765 | Mid aspect |
| F-One | SK8 HM Carbon (T2) 650 | 650 | -4.4% | 8.10 | -6.9% | 725 | Mid-low aspect |
| GONG | Fluid H V3 FG XS | 710 | +4.4% | 8.40 | -3.4% | 770 | Mid-low aspect |
| GONG | Fluid V3 Atmo XS (Team / Carbon HM) | 710 | +4.4% | 8.70 | +0.0% | 780 | Mid aspect |
| Takoon | Flare Front Wing 650 | 650 | -4.4% | 8.30 | -4.6% | 720 | Mid-low aspect |
| Sabfoil | Blackbird Razor 737 | 648 | -4.7% | 8.40 | -3.4% | 737 | Mid-low aspect |
Specifications
| Family | Free Series |
|---|---|
| Size | FS 680 |
| Area, cm² | 680 |
| Area basis | unknown |
| Span, mm | 770 |
| Chord, mm | — |
| Aspect ratio | 8.70 |
| Band | Mid aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, kite, prone |
| Construction | HM carbon with integrated titanium interface |
| Model year | 2026 |
| Source | manufacturer · read 2026-09-14 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
