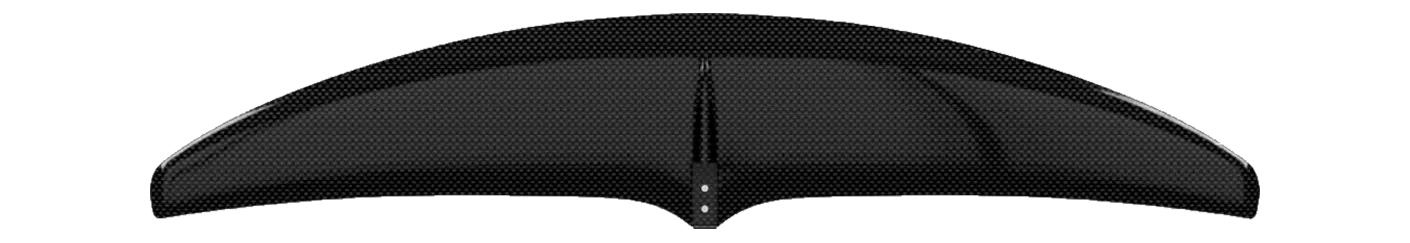

Levitaz HA 1600
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,600area, cm²
- 1,110span, mm
- 8.00aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family High Aspect Brand’s category Glide / high aspect Disciplines wing, prone 2022-2023
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the F-One SEVEN SEAS Carbon 1600, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The High Aspect has run 3 sizes, 1,100–1,600 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 6.6 at one end of the range to 8.0 at the other, so its sizes differ in shape as well as in area.
Its 1,110 mm span is 4% narrower than typical for the area — the median across the 78 current wings within 10% of its size is 1,155 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | SEVEN SEAS Carbon 1600 | 1,600 | +0.0% | 8.00 | +0.0% | 1,130 | Mid-low aspect |
| Sabfoil | Leviathan 1150 | 1,580 | -1.2% | 8.37 | +4.6% | 1,150 | Mid-low aspect |
| AFS | Evo Front Wing 1650 | 1,650 | +3.1% | 7.50 | -6.2% | 1,110 | Mid-low aspect |
| Armstrong | APF (All-round Pump Foil) APF1675 | 1,675 | +4.7% | 8.60 | +7.5% | 1,202 | Mid aspect |
| Naish | Jet HA Front Wing 1640 | 1,640 | +2.5% | 7.38 | -7.8% | 1,100 | Mid-low aspect |
| GONG | Curve H V3 FG 3XL | 1,520 | -5.0% | 8.40 | +5.0% | 1,130 | Mid-low aspect |
Specifications
| Family | High Aspect |
|---|---|
| Size | 1600 |
| Area, cm² | 1,600 |
| Area basis | unknown |
| Span, mm | 1,110 |
| Chord, mm | — |
| Aspect ratio | 8.00 |
| Band | Mid-low aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone |
| Construction | — |
| Model year | 2022-2023 |
| Source | manufacturer · read 2026-09-14 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
