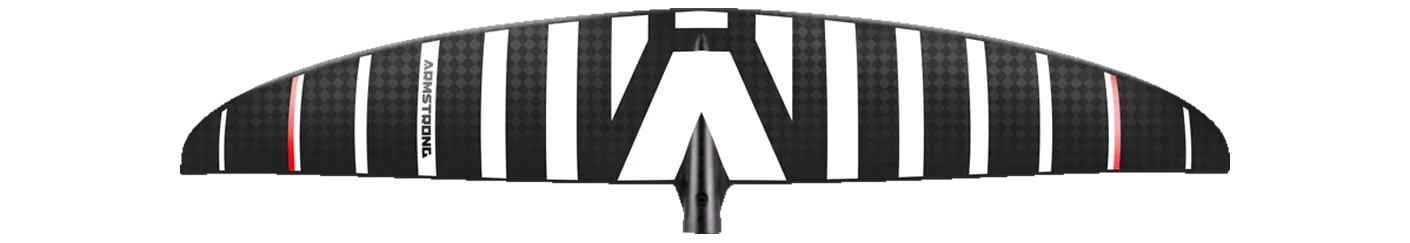

Armstrong MA (Mid Aspect) V1 MA1475
- Discontinuedsuperseded or no longer in the brand’s current range
- 1,475area, cm²
- 1,050span, mm
- 7.50aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family MA (V1) Brand’s category Surf / carve Disciplines wing, tow, prone carbon · 2022-2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the AFS Evo Front Wing 1450, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The MA (Mid Aspect) V1 has run 6 sizes, 625–1,750 cm², including discontinued sizes; aspect ratio moves 7.1–7.6 across the range.
Its 1,050 mm span is 7% narrower than typical for the area — the median across the 77 current wings within 10% of its size is 1,130 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| AFS | Evo Front Wing 1450 | 1,450 | -1.7% | 7.60 | +1.3% | 1,040 | Mid-low aspect |
| Axis | HPS (High Performance Speed) 1050 | 1,502 | +1.8% | 7.55 | +0.7% | 1,050 | Mid-low aspect |
| Takoon | X-Glide V2 Front Wing 1450 | 1,450 | -1.7% | 7.20 | -4.0% | 1,018 | Mid-low aspect |
| Axis | PNG (Pump and Glide) 1010 | 1,430 | -3.1% | 7.13 | -4.9% | 1,010 | Mid-low aspect |
| Duotone | Whizz SLS 1450 | 1,450 | -1.7% | 7.90 | +5.3% | 1,070 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1500 | 1,500 | +1.7% | 8.00 | +6.7% | 1,095 | Mid-low aspect |
| GONG | Ascent V3 XXL | 1,500 | +1.7% | 7.00 | -6.7% | 1,020 | Mid-low aspect |
| Naish | Jet HA Front Wing 1440 | 1,440 | -2.4% | 8.00 | +6.7% | 1,070 | Mid-low aspect |
Specifications
| Family | MA (V1) |
|---|---|
| Size | MA1475 |
| Area, cm² | 1,475 |
| Area basis | unknown |
| Span, mm | 1,050 |
| Chord, mm | — |
| Aspect ratio | 7.50 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, tow, prone |
| Construction | carbon |
| Model year | 2022-2024 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
