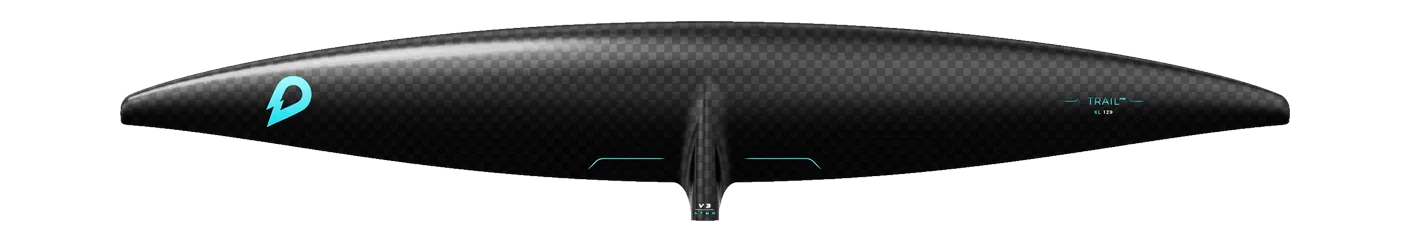

GONG Trail V3 Atmo L (Team / Carbon HM)
- 1,350area, cm²
- 1,170span, mm
- 10.10aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Trail Chord 161 mm Brand’s category Pump / dock Disciplines pump Team / Carbon HM · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Excalibur HA Front Wing 1344, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Trail V3 Atmo runs 4 sizes, 1,350–2,250 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,170 mm span is 9% wider than typical for the area — the median across the 94 current wings within 10% of its size is 1,070 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Excalibur HA Front Wing 1344 | 1,344 | -0.4% | 10.20 | +1.0% | 1,170 | High aspect |
| Duotone | Glide 2.0 SLS 1350 | 1,350 | +0.0% | 9.90 | -2.0% | 1,160 | High aspect |
| F-One | JAM HM Carbon 1400 | 1,400 | +3.7% | 10.30 | +2.0% | 1,200 | High aspect |
| Armstrong | APF (All-round Pump Foil) APF1350 | 1,350 | +0.0% | 10.70 | +5.9% | 1,202 | High aspect |
| Code Foils | S Series Front Wing 1300S | 1,300 | -3.7% | 9.50 | -5.9% | 1,115 | Mid aspect |
| RRD | Universal Moonfish Front Wing Y30 1350 | 1,350 | +0.0% | 10.70 | +5.9% | 1,200 | High aspect |
| Unifoil | Evolution 205 | 1,323 | -2.0% | 9.40 | -6.9% | 1,113 | Mid aspect |
| F-One | EAGLE HM Carbon 1290 | 1,290 | -4.4% | 9.50 | -5.9% | 1,105 | Mid aspect |
Specifications
| Family | Trail |
|---|---|
| Size | L |
| Area, cm² | 1,350 |
| Area basis | unknown |
| Span, mm | 1,170 |
| Chord, mm | 161 |
| Aspect ratio | 10.10 |
| Band | High aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Team / Carbon HM |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
