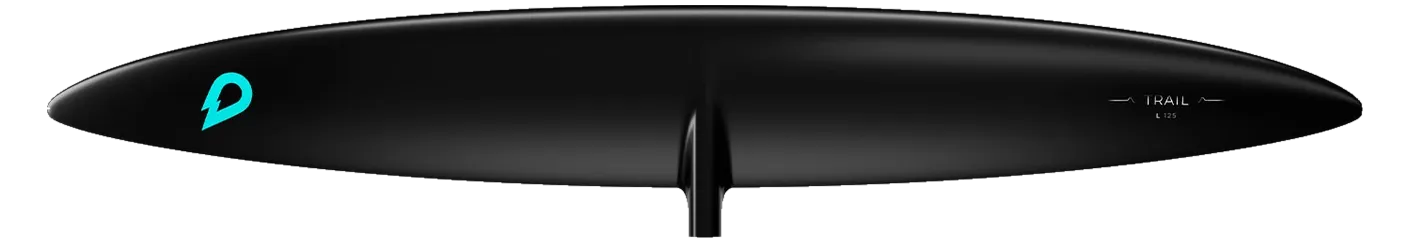

GONG Trail V3 XL
- 1,940area, cm²
- 1,350span, mm
- 9.40aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Trail Area basis projected Chord 188 mm Brand’s category Pump / dock Disciplines pump Perf / fiberglass · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the RRD Universal Moonfish Front Wing Y30 1900, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Trail V3 runs 3 sizes, 1,660–2,240 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,350 mm span is 4% wider than typical for the area — the median across the 59 current wings within 10% of its size is 1,300 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| RRD | Universal Moonfish Front Wing Y30 1900 | 1,900 | -2.1% | 9.60 | +2.1% | 1,350 | High aspect |
| Armstrong | APF (All-round Pump Foil) APF1880 | 1,880 | -3.1% | 9.20 | -2.1% | 1,302 | Mid aspect |
| Takoon | Pump One Front Wing 2000 | 2,000 | +3.1% | 9.25 | -1.6% | 1,360 | Mid aspect |
| Code Foils | Kanga Series Front Wing 1870 | 1,870 | -3.6% | 9.10 | -3.2% | 1,300 | Mid aspect |
| Sabfoil | Leviathan 1350 | 1,870 | -3.6% | 9.75 | +3.7% | 1,350 | High aspect |
| Sabfoil | Leviathan Blackbird The 1350 | 1,864 | -3.9% | 9.80 | +4.3% | 1,350 | High aspect |
Specifications
| Family | Trail |
|---|---|
| Size | XL |
| Area, cm² | 1,940 |
| Area basis | projected |
| Span, mm | 1,350 |
| Chord, mm | 188 |
| Aspect ratio | 9.40 |
| Band | Mid aspect |
| Brand’s category | Pump / dock |
| Disciplines | pump |
| Construction | Perf / fiberglass |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
