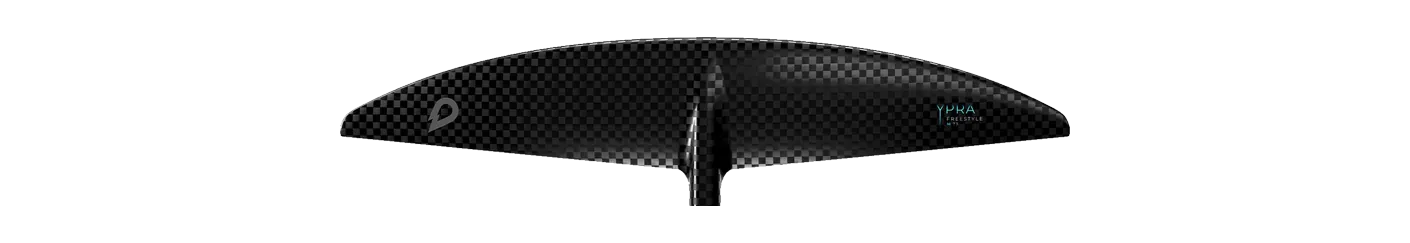

GONG Ypra Freestyle V3 M
- 680area, cm²
- 730span, mm
- 7.80aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Ypra Area basis projected Chord 132 mm Brand’s category Surf / carve Disciplines wing, kite Pro Team / Carbon HM · 2025
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the F-One SUSHI UHM Carbon 680, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 730 mm span is 6% narrower than typical for the area — the median across the 102 current wings within 10% of its size is 780 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| F-One | SUSHI UHM Carbon 680 | 680 | +0.0% | 7.70 | -1.3% | 725 | Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA690 | 690 | +1.5% | 8.00 | +2.6% | 767 | Mid-low aspect |
| KT Foiling | Halo 670 | 670 | -1.5% | 8.00 | +2.6% | 725 | Mid-low aspect |
| ENSIS | INFINITY ACE Front Wing 690 | 690 | +1.5% | 7.50 | -3.8% | 720 | Mid-low aspect |
| Sroka | S-Foil 670 S HA | 670 | -1.5% | 7.50 | -3.8% | 700 | Mid-low aspect |
| Unifoil | Aggression 105 | 677 | -0.4% | 8.10 | +3.8% | 740 | Mid-low aspect |
| Sabfoil | 707 Balz Muller Limited Müller | 661 | -2.8% | 7.55 | -3.2% | 707 | Mid-low aspect |
| Code Foils | X Series Front Wing 700X | 700 | +2.9% | 8.20 | +5.1% | 755 | Mid-low aspect |
| North | Sonar MA700v2 | 700 | +2.9% | 7.40 | -5.1% | 720 | Mid-low aspect |
| F-One | SK8 HM Carbon (T2) 650 | 650 | -4.4% | 8.10 | +3.8% | 725 | Mid-low aspect |
| Takoon | Flare Front Wing 650 | 650 | -4.4% | 8.30 | +6.4% | 720 | Mid-low aspect |
| Takuma | Kujira II Front Wing 650 | 650 | -4.4% | 7.40 | -5.1% | 690 | Mid-low aspect |
| Duotone | Carve 3.0 D/LAB 650 | 650 | -4.4% | 7.20 | -7.7% | 680 | Mid-low aspect |
| Lift Foils | 105 Havoc Front Wing | 677 | -0.4% | 7.20 | -7.7% | 699 | Mid-low aspect |
| Sabfoil | Blackbird Razor 737 | 648 | -4.7% | 8.40 | +7.7% | 737 | Mid-low aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | M |
| Area, cm² | 680 |
| Area basis | projected |
| Span, mm | 730 |
| Chord, mm | 132 |
| Aspect ratio | 7.80 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, kite |
| Construction | Pro Team / Carbon HM |
| Model year | 2025 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
