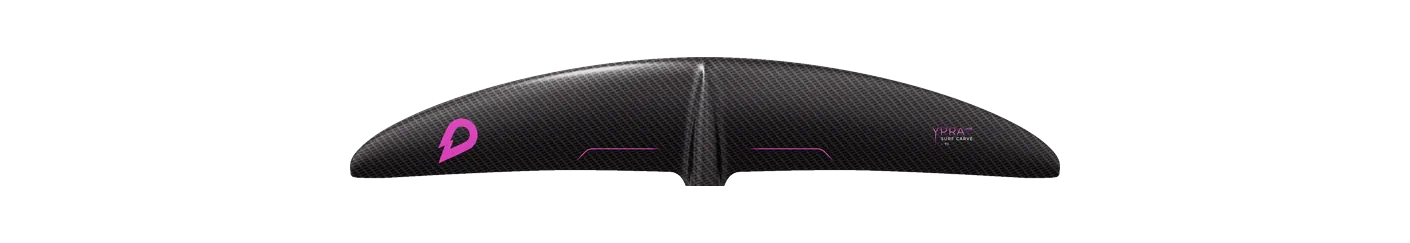

GONG Ypra Surf Carve V3 Atmo S
- 620area, cm²
- 710span, mm
- 8.20aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Ypra Chord 115 mm Brand’s category Surf / carve Disciplines prone, wing, sup Pro Team / 3K Texalium clear carbon prepreg · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Slingshot One-Lock Glide 625, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Ypra Surf Carve V3 Atmo runs 4 sizes, 520–820 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 710 mm span is 8% narrower than typical for the area — the median across the 82 current wings within 10% of its size is 770 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Glide 625 | 625 | +0.8% | 8.40 | +2.4% | 724 | Mid-low aspect |
| F-One | SUSHI UHM Carbon 620 | 620 | +0.0% | 7.80 | -4.9% | 695 | Mid-low aspect |
| Naish | Siren MA Front Wing 600 | 600 | -3.2% | 8.50 | +3.7% | 714 | Mid-low aspect |
| North | Sonar MA600v2 | 600 | -3.2% | 7.70 | -6.1% | 680 | Mid-low aspect |
| Lift Foils | 92 Havoc Front Wing | 594 | -4.2% | 8.50 | +3.7% | 711 | Mid-low aspect |
| Sabfoil | Blackbird Razor 737 | 648 | +4.5% | 8.40 | +2.4% | 737 | Mid-low aspect |
| Armstrong | MA Mk II (Mid Aspect) MA590 | 590 | -4.8% | 8.00 | -2.4% | 690 | Mid-low aspect |
| F-One | SK8 HM Carbon (T2) 650 | 650 | +4.8% | 8.10 | -1.2% | 725 | Mid-low aspect |
| Takoon | Flare Front Wing 650 | 650 | +4.8% | 8.30 | +1.2% | 720 | Mid-low aspect |
Specifications
| Family | Ypra |
|---|---|
| Size | S |
| Area, cm² | 620 |
| Area basis | unknown |
| Span, mm | 710 |
| Chord, mm | 115 |
| Aspect ratio | 8.20 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wing, sup |
| Construction | Pro Team / 3K Texalium clear carbon prepreg |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
