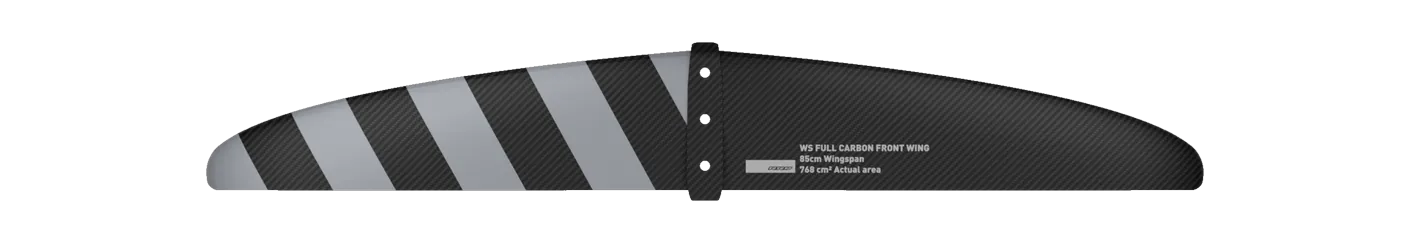

RRD WS Full Carbon Front Wing Y26 965: a legacy wing, no longer in RRD's current range. 965 cm², 1,000 mm span, aspect ratio 10.36. The current wings that match it within ±5% area and ±8% aspect ratio, from RRD's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Sabfoil | Blackbird Razor 977 Blackbird Razor 977 | 953 | -1.2% | 10.20 | -1.5% | 977 | C4 High aspect |
| Lift Foils | 150 High Aspect X Front Wing 150 | 968 | +0.3% | 10.10 | -2.5% | 991 | C4 High aspect |
| Naish | Excalibur HA Front Wing Excalibur 944 | 944 | -2.2% | 10.20 | -1.5% | 982 | C4 High aspect |
| North | Sonar HA950 HA950 | 950 | -1.6% | 10.60 | +2.3% | 1,000 | C4 High aspect |
| Sabfoil | Razor PRO 975 Razor PRO 975 | 942 | -2.4% | 10.20 | -1.5% | 980 | C4 High aspect |
| KT Foiling | Atlas 960 Atlas 960 | 960 | -0.5% | 10.80 | +4.2% | 1,020 | C4 High aspect |
| Armstrong | HA (High Aspect) HA980 | 980 | +1.6% | 9.68 | -6.6% | 974 | C4 High aspect |
| AFS | Enduro Front Wing Enduro 1000 | 1,000 | +3.6% | 11.00 | +6.2% | 1,050 | C4 High aspect |
| Slingshot | One-Lock Flow 1000 | 1,000 | +3.6% | 11.00 | +6.2% | 1,049 | C4 High aspect |
| Family | WS FULL CARBON |
|---|---|
| Size | 965 |
| Area, cm² | 965 |
| Area basis | flat |
| Span, mm | 1,000 |
| Chord, mm | 125 |
| Aspect ratio | 10.36 |
| Band | C4 High aspect |
| Brand files it under | Race / freerace |
| Disciplines | windfoil |
| Construction | Full Carbon |
| Model year | legacy |
| Source | manufacturer |
The brand publishes no aspect ratio; this one is derived from its published span and area (span² ÷ area).
See RRD on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
