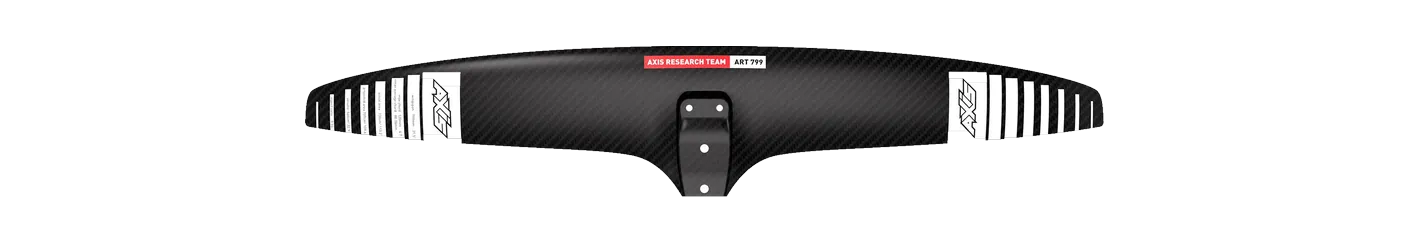

Axis ART (AXIS Research Team) 799
- 730area, cm²
- 799span, mm
- 9.05aspect ratio
- Midaspect · AR 8.5 – 9.5
Family ART Area basis flat Chord 120 mm Brand’s category Glide / high aspect Disciplines wing, prone, sup, downwind, pump carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Slingshot One-Lock Glide 725, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The ART runs 5 sizes, 556–1,144 cm²; aspect ratio moves 9.0–10.6 across the range.
Its 799 mm span is 4% narrower than typical for the area — the median across the 122 current wings within 10% of its size is 830 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Slingshot | One-Lock Glide 725 | 725 | -0.7% | 8.90 | -1.7% | 799 | Mid aspect |
| Unifoil | Evolution 115 | 740 | +1.4% | 9.30 | +2.8% | 831 | Mid aspect |
| Sabfoil | Razor PRO 825 | 746 | +2.2% | 8.84 | -2.3% | 820 | Mid aspect |
| AFS | Silk V2 Front Wing 750 | 750 | +2.7% | 9.00 | -0.6% | 821 | Mid aspect |
| GONG | Fluid V3 Atmo XS (Team / Carbon HM) | 710 | -2.7% | 8.70 | -3.9% | 780 | Mid aspect |
| Code Foils | S Series Front Wing 720S | 720 | -1.4% | 9.50 | +5.0% | 830 | Mid aspect |
| ENSIS | FLOW ACE Front Wing 720 | 720 | -1.4% | 9.50 | +5.0% | 827 | Mid aspect |
| RRD | Flying Fish Front Wing Y30 750 | 750 | +2.7% | 9.50 | +5.0% | 840 | Mid aspect |
| Lift Foils | 120 Vario Beta Front Wing | 744 | +1.9% | 9.60 | +6.1% | 864 | High aspect |
| AFS | Pure Fuselink Foil (monobloc front wing + fuselage) 700 | 700 | -4.1% | 9.60 | +6.1% | 820 | High aspect |
| Cabrinha | Fusion H-Series MkII H700 | 700 | -4.1% | 9.49 | +4.9% | 815 | Mid aspect |
| GONG | Ypra Slalom V3 Atmo S | 700 | -4.1% | 8.90 | -1.7% | 790 | Mid aspect |
| KT Foiling | Nomad 700 | 700 | -4.1% | 8.70 | -3.9% | 780 | Mid aspect |
| Sabfoil | Medusa PRO 769 | 700 | -4.1% | 8.44 | -6.7% | 769 | Mid-low aspect |
| GONG | Curve H V3 FG XS | 720 | -1.4% | 8.40 | -7.2% | 780 | Mid-low aspect |
| GONG | Fluid H V3 FG XS | 710 | -2.7% | 8.40 | -7.2% | 770 | Mid-low aspect |
Specifications
| Family | ART |
|---|---|
| Size | ART 799 |
| Area, cm² | 730 |
| Area basis | flat |
| Span, mm | 799 |
| Chord, mm | 120 |
| Aspect ratio | 9.05 |
| Band | Mid aspect |
| Brand’s category | Glide / high aspect |
| Disciplines | wing, prone, sup, downwind, pump |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
