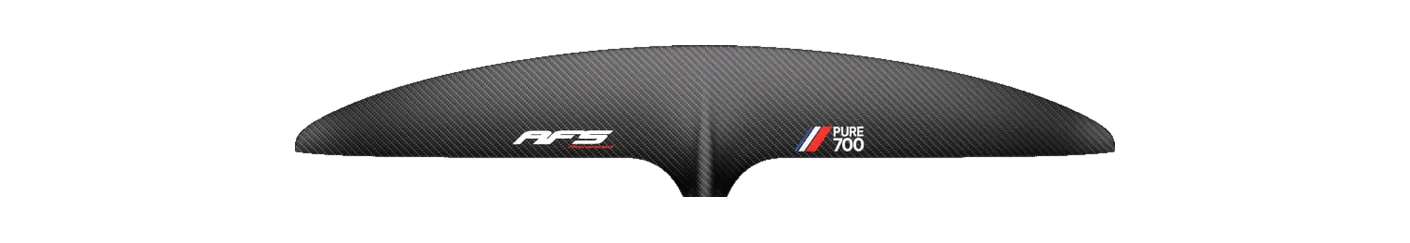

AFS Pure Fuselink Foil (monobloc front wing + fuselage) 700
- 700area, cm²
- 820span, mm
- 9.60aspect ratio
- Highaspect · AR 9.5 – 11.5
Family PURE Chord 112 mm Brand’s category Race / freerace Disciplines wing, prone, race HM Carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Cabrinha Fusion H-Series MkII H700, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 820 mm span is typical for the area: the median across the 114 current wings within 10% of its size is 810 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Cabrinha | Fusion H-Series MkII H700 | 700 | +0.0% | 9.49 | -1.1% | 815 | Mid aspect |
| F-One | EAGLE HM Carbon 690 | 690 | -1.4% | 9.70 | +1.0% | 820 | High aspect |
| Armstrong | HA (High Aspect) HA680 | 680 | -2.9% | 10.00 | +4.2% | 828 | High aspect |
| Code Foils | S Series Front Wing 720S | 720 | +2.9% | 9.50 | -1.0% | 830 | Mid aspect |
| ENSIS | FLOW ACE Front Wing 720 | 720 | +2.9% | 9.50 | -1.0% | 827 | Mid aspect |
| North | Sonar SF680 | 680 | -2.9% | 9.20 | -4.2% | 790 | Mid aspect |
| Takoon | Flash Front Wing 680 | 680 | -2.9% | 9.80 | +2.1% | 815 | High aspect |
| Omen | Agent 700 | 700 | +0.0% | 10.10 | +5.2% | 843 | High aspect |
| Duotone | Crest D/LAB 675 | 675 | -3.6% | 9.30 | -3.1% | 790 | Mid aspect |
| Naish | Mach-2 Front Wing 711 | 711 | +1.6% | 10.16 | +5.8% | 850 | High aspect |
| Axis | Surge 830 | 728 | +4.0% | 9.48 | -1.2% | 830 | Mid aspect |
| Axis | ART (AXIS Research Team) 799 | 730 | +4.3% | 9.05 | -5.7% | 799 | Mid aspect |
| GONG | Ypra Race V3 670 cm² | 670 | -4.3% | 9.90 | +3.1% | 820 | High aspect |
| GONG | Ypra Slalom V3 Atmo S | 700 | +0.0% | 8.90 | -7.3% | 790 | Mid aspect |
| Slingshot | One-Lock Glide 725 | 725 | +3.6% | 8.90 | -7.3% | 799 | Mid aspect |
Specifications
| Family | PURE |
|---|---|
| Size | Pure 700 |
| Area, cm² | 700 |
| Area basis | unknown |
| Span, mm | 820 |
| Chord, mm | 112 |
| Aspect ratio | 9.60 |
| Band | High aspect |
| Brand’s category | Race / freerace |
| Disciplines | wing, prone, race |
| Construction | HM Carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
