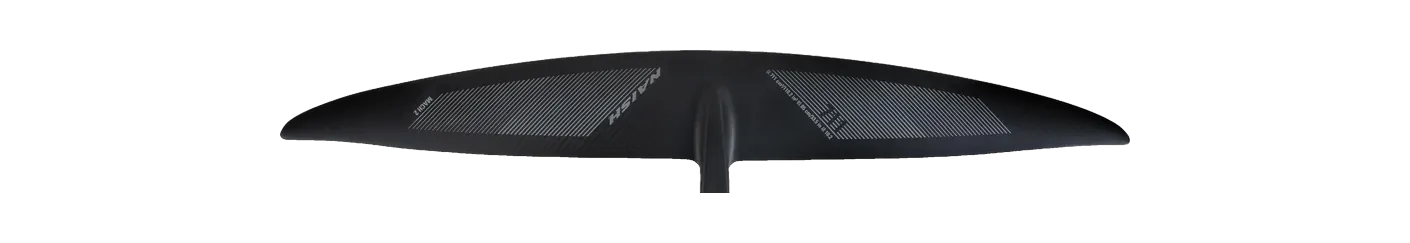

Naish Mach-2 Front Wing 711
- 711area, cm²
- 850span, mm
- 10.16aspect ratio
- Highaspect · AR 9.5 – 11.5
Family Mach-2 Area basis projected Brand’s category Race / freerace Disciplines downwind, race, wing HM and UD prepreg carbon, dual expansion foam core · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Omen Agent 700, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
Its 850 mm span is 4% wider than typical for the area — the median across the 118 current wings within 10% of its size is 815 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Omen | Agent 700 | 700 | -1.5% | 10.10 | -0.6% | 843 | High aspect |
| F-One | EAGLE HM Carbon 690 | 690 | -3.0% | 9.70 | -4.5% | 820 | High aspect |
| Takoon | Flow Front Wing 700 | 700 | -1.5% | 10.70 | +5.3% | 865 | High aspect |
| AFS | Pure Fuselink Foil (monobloc front wing + fuselage) 700 | 700 | -1.5% | 9.60 | -5.5% | 820 | High aspect |
| Code Foils | S Series Front Wing 720S | 720 | +1.3% | 9.50 | -6.5% | 830 | Mid aspect |
| ENSIS | FLOW ACE Front Wing 720 | 720 | +1.3% | 9.50 | -6.5% | 827 | Mid aspect |
| GONG | Veloce Free Fly (FF) V3 Atmo S | 740 | +4.1% | 10.60 | +4.3% | 880 | High aspect |
| GONG | Veloce V3 Atmo S | 740 | +4.1% | 10.10 | -0.6% | 870 | High aspect |
| Cabrinha | Fusion H-Series MkII H700 | 700 | -1.5% | 9.49 | -6.6% | 815 | Mid aspect |
| Axis | Surge 830 | 728 | +2.4% | 9.48 | -6.7% | 830 | Mid aspect |
| Armstrong | HA (High Aspect) HA680 | 680 | -4.4% | 10.00 | -1.6% | 828 | High aspect |
| KT Foiling | Atlas 680 | 680 | -4.4% | 10.60 | +4.3% | 850 | High aspect |
| Takoon | Flash Front Wing 680 | 680 | -4.4% | 9.80 | -3.5% | 815 | High aspect |
| Lift Foils | 120 Vario Beta Front Wing | 744 | +4.6% | 9.60 | -5.5% | 864 | High aspect |
Specifications
| Family | Mach-2 |
|---|---|
| Size | Mach-2 711 |
| Area, cm² | 711 |
| Area basis | projected |
| Span, mm | 850 |
| Chord, mm | — |
| Aspect ratio | 10.16 |
| Band | High aspect |
| Brand’s category | Race / freerace |
| Disciplines | downwind, race, wing |
| Construction | HM and UD prepreg carbon, dual expansion foam core |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
