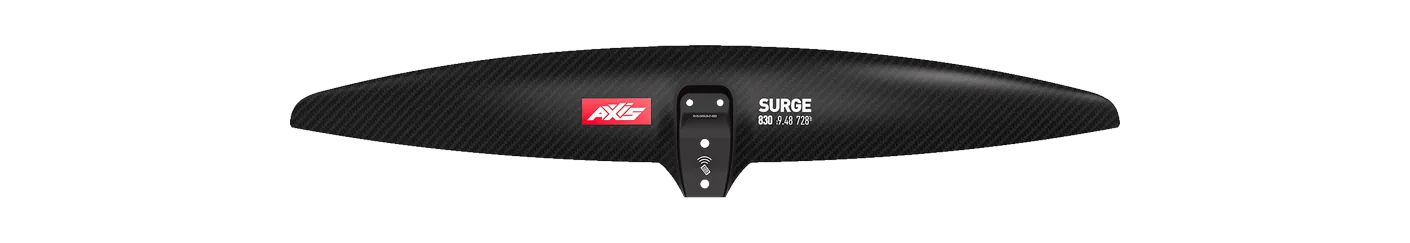

Axis Surge 830
- 728area, cm²
- 830span, mm
- 9.48aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Surge Area basis flat Chord 116 mm Brand’s category Surf / carve Disciplines prone, wing, parawing, kite carbon · 2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Lift Foils 120 Vario Beta Front Wing (#4), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Surge runs 8 sizes, 590–1,199 cm²; aspect ratio moves 9.3–11.0 across the range.
Its 830 mm span is typical for the area: the median across the 122 current wings within 10% of its size is 829 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Code Foils | S Series Front Wing 720S | 720 | -1.1% | 9.50 | +0.2% | 830 | Mid aspect |
| ENSIS | FLOW ACE Front Wing 720 | 720 | -1.1% | 9.50 | +0.2% | 827 | Mid aspect |
| Unifoil | Evolution 115 | 740 | +1.6% | 9.30 | -1.9% | 831 | Mid aspect |
| Lift Foils | 120 Vario Beta Front Wing | 744 | +2.2% | 9.60 | +1.3% | 864 | High aspect |
| RRD | Flying Fish Front Wing Y30 750 | 750 | +3.0% | 9.50 | +0.2% | 840 | Mid aspect |
| AFS | Silk V2 Front Wing 750 | 750 | +3.0% | 9.00 | -5.1% | 821 | Mid aspect |
| Slingshot | One-Lock Glide 725 | 725 | -0.4% | 8.90 | -6.1% | 799 | Mid aspect |
| AFS | Pure Fuselink Foil (monobloc front wing + fuselage) 700 | 700 | -3.8% | 9.60 | +1.3% | 820 | High aspect |
| Cabrinha | Fusion H-Series MkII H700 | 700 | -3.8% | 9.49 | +0.1% | 815 | Mid aspect |
| GONG | Ypra Slalom V3 Atmo S | 700 | -3.8% | 8.90 | -6.1% | 790 | Mid aspect |
| GONG | Veloce V3 Atmo S | 740 | +1.6% | 10.10 | +6.5% | 870 | High aspect |
| North | Sonar HA750 | 750 | +3.0% | 10.10 | +6.5% | 870 | High aspect |
| Omen | Agent 700 | 700 | -3.8% | 10.10 | +6.5% | 843 | High aspect |
| Sabfoil | Razor PRO 825 | 746 | +2.5% | 8.84 | -6.8% | 820 | Mid aspect |
| Naish | Mach-2 Front Wing 711 | 711 | -2.3% | 10.16 | +7.2% | 850 | High aspect |
| Naish | Excalibur HA Front Wing 744 | 744 | +2.2% | 10.20 | +7.6% | 870 | High aspect |
Specifications
| Family | Surge |
|---|---|
| Size | Surge 830 |
| Area, cm² | 728 |
| Area basis | flat |
| Span, mm | 830 |
| Chord, mm | 116 |
| Aspect ratio | 9.48 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone, wing, parawing, kite |
| Construction | carbon |
| Model year | 2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
