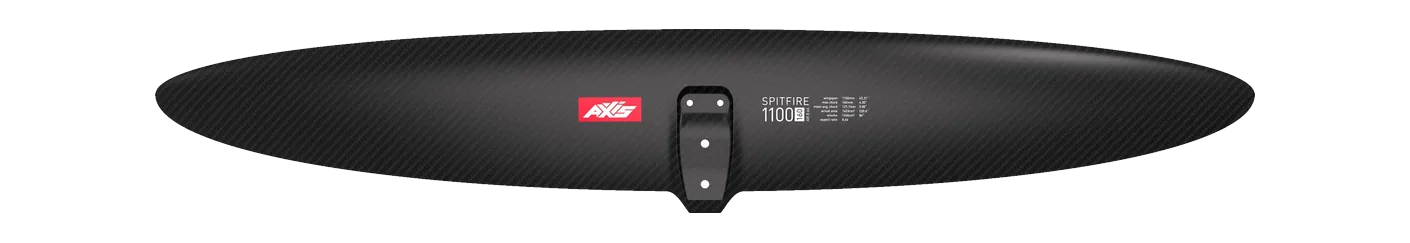

Axis Spitfire 1100
- 1,423area, cm²
- 1,100span, mm
- 8.66aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Spitfire Area basis flat Chord 160 mm Brand’s category Surf / carve Disciplines prone carbon · 2025-2026
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Takoon Flare Front Wing 1400, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Spitfire runs 10 sizes, 628–1,554 cm², and changes proportion as it grows: aspect ratio runs 6.1 at one end of the range to 9.1 at the other, so its sizes differ in shape as well as in area.
Its 1,100 mm span is typical for the area: the median across the 92 current wings within 10% of its size is 1,100 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | Flare Front Wing 1400 | 1,400 | -1.6% | 8.60 | -0.7% | 1,100 | Mid aspect |
| Takuma | Kujira II Front Wing 1400 | 1,400 | -1.6% | 8.60 | -0.7% | 1,096 | Mid aspect |
| GONG | Fluid H V3 FG 3XL | 1,460 | +2.6% | 8.40 | -3.0% | 1,110 | Mid-low aspect |
| GONG | Fluid V3 Atmo 3XL (Team / Carbon HM) | 1,460 | +2.6% | 8.70 | +0.5% | 1,120 | Mid aspect |
| GONG | Curve H V3 FG XXL | 1,370 | -3.7% | 8.40 | -3.0% | 1,070 | Mid-low aspect |
| ENSIS | STRIDE ACE Front Wing 1360 | 1,360 | -4.4% | 8.90 | +2.8% | 1,100 | Mid aspect |
| GONG | Sirus V3 L | 1,450 | +1.9% | 9.30 | +7.4% | 1,160 | Mid aspect |
| GONG | Sirus V3 Atmo L (Perf / fiberglass) | 1,442 | +1.3% | 9.30 | +7.4% | 1,160 | Mid aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1390 | 1,390 | -2.3% | 8.00 | -7.6% | 1,060 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1400 | 1,400 | -1.6% | 8.00 | -7.6% | 1,055 | Mid-low aspect |
| Naish | Jet HA Front Wing 1440 | 1,440 | +1.2% | 8.00 | -7.6% | 1,070 | Mid-low aspect |
Specifications
| Family | Spitfire |
|---|---|
| Size | Spitfire 1100 |
| Area, cm² | 1,423 |
| Area basis | flat |
| Span, mm | 1,100 |
| Chord, mm | 160 |
| Aspect ratio | 8.66 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | prone |
| Construction | carbon |
| Model year | 2025-2026 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
