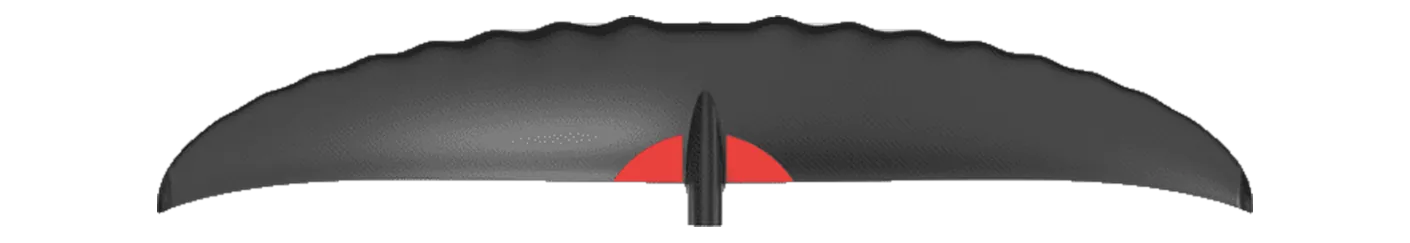

Takuma Kujira II Front Wing 1400
- 1,400area, cm²
- 1,096span, mm
- 8.60aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Kujira II Chord 162 mm Brand’s category All-round / freeride Disciplines wing, prone, downwind, sup full carbon · 2024-2026
The Kujira II Front Wing runs 6 sizes, 650–1,400 cm²; aspect ratio moves 7.4–8.6 across the range.
Its 1,096 mm span is typical for the area: the median across the 88 current wings within 10% of its size is 1,100 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takoon | Flare Front Wing 1400 | 1,400 | +0.0% | 8.60 | +0.0% | 1,100 | Mid aspect |
| Axis | Spitfire 1100 | 1,423 | +1.6% | 8.66 | +0.7% | 1,100 | Mid aspect |
| GONG | Curve H V3 FG XXL | 1,370 | -2.1% | 8.40 | -2.3% | 1,070 | Mid-low aspect |
| ENSIS | STRIDE ACE Front Wing 1360 | 1,360 | -2.9% | 8.90 | +3.5% | 1,100 | Mid aspect |
| Sroka | S-Foil 1350 L HA | 1,350 | -3.6% | 9.00 | +4.7% | 1,100 | Mid aspect |
| GONG | Fluid H V3 FG 3XL | 1,460 | +4.3% | 8.40 | -2.3% | 1,110 | Mid-low aspect |
| GONG | Fluid V3 Atmo 3XL (Team / Carbon HM) | 1,460 | +4.3% | 8.70 | +1.2% | 1,120 | Mid aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1390 | 1,390 | -0.7% | 8.00 | -7.0% | 1,060 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1400 | 1,400 | +0.0% | 8.00 | -7.0% | 1,055 | Mid-low aspect |
| Naish | Jet HA Front Wing 1440 | 1,440 | +2.9% | 8.00 | -7.0% | 1,070 | Mid-low aspect |
Specifications
| Family | Kujira II |
|---|---|
| Size | Kujira II 1400 |
| Area, cm² | 1,400 |
| Area basis | unknown |
| Span, mm | 1,096 |
| Chord, mm | 162 |
| Aspect ratio | 8.60 |
| Band | Mid aspect |
| Brand’s category | All-round / freeride |
| Disciplines | wing, prone, downwind, sup |
| Construction | full carbon |
| Model year | 2024-2026 |
| Source | manufacturer · read 2026-08-13 |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
