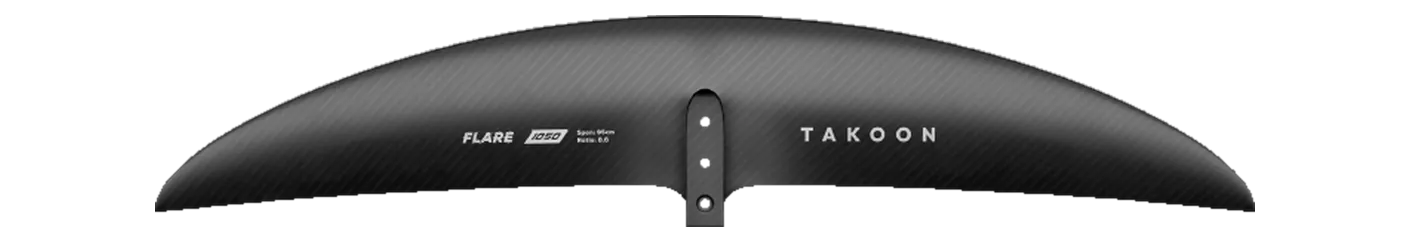

Takoon Flare Front Wing 1400
- 1,400area, cm²
- 1,100span, mm
- 8.60aspect ratio
- Midaspect · AR 8.5 – 9.5
Family Flare Chord 166 mm Brand’s category Surf / carve Disciplines wing, prone
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest with a traced outline, the Axis Spitfire 1100 (#2), is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Flare Front Wing runs 8 sizes, 550–1,400 cm², and holds its proportions across the range: every size publishes an aspect ratio within 5% of the others.
Its 1,100 mm span is typical for the area: the median across the 88 current wings within 10% of its size is 1,098 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Takuma | Kujira II Front Wing 1400 | 1,400 | +0.0% | 8.60 | +0.0% | 1,096 | Mid aspect |
| Axis | Spitfire 1100 | 1,423 | +1.6% | 8.66 | +0.7% | 1,100 | Mid aspect |
| GONG | Curve H V3 FG XXL | 1,370 | -2.1% | 8.40 | -2.3% | 1,070 | Mid-low aspect |
| ENSIS | STRIDE ACE Front Wing 1360 | 1,360 | -2.9% | 8.90 | +3.5% | 1,100 | Mid aspect |
| Sroka | S-Foil 1350 L HA | 1,350 | -3.6% | 9.00 | +4.7% | 1,100 | Mid aspect |
| GONG | Fluid H V3 FG 3XL | 1,460 | +4.3% | 8.40 | -2.3% | 1,110 | Mid-low aspect |
| GONG | Fluid V3 Atmo 3XL (Team / Carbon HM) | 1,460 | +4.3% | 8.70 | +1.2% | 1,120 | Mid aspect |
| Armstrong | MA Mk II (Mid Aspect) MA1390 | 1,390 | -0.7% | 8.00 | -7.0% | 1,060 | Mid-low aspect |
| F-One | SEVEN SEAS Carbon 1400 | 1,400 | +0.0% | 8.00 | -7.0% | 1,055 | Mid-low aspect |
| Naish | Jet HA Front Wing 1440 | 1,440 | +2.9% | 8.00 | -7.0% | 1,070 | Mid-low aspect |
Specifications
| Family | Flare |
|---|---|
| Size | 1400 |
| Area, cm² | 1,400 |
| Area basis | unknown |
| Span, mm | 1,100 |
| Chord, mm | 166 |
| Aspect ratio | 8.60 |
| Band | Mid aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone |
| Construction | — |
| Model year | — |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
