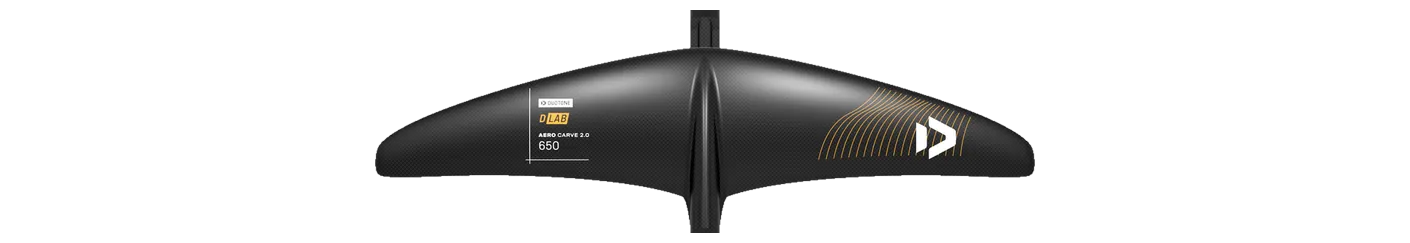

Duotone Aero Carve 2.0 D/LAB 650: a legacy wing, no longer in Duotone's current range. 650 cm², 660 mm span, aspect ratio 6.80. The current wings that match it within ±5% area and ±8% aspect ratio, from Duotone's own published specifications.
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a match inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Cabrinha | Rebound 650 | 650 | +0.0% | 6.90 | +1.5% | 670 | C2 Mid-low aspect |
| RRD | Universal Mantaray Front Wing Y30 650 | 650 | +0.0% | 6.90 | +1.5% | 670 | C2 Mid-low aspect |
| Naish | Ultra Jet Front Wing Ultra Jet 650 | 650 | +0.0% | 7.11 | +4.6% | 680 | C2 Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 Atmo S | 620 | -4.6% | 6.80 | +0.0% | 650 | C2 Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 Atmo M | 680 | +4.6% | 6.80 | +0.0% | 680 | C2 Mid-low aspect |
| GONG | Ypra Surf-Freestyle V3 S | 620 | -4.6% | 6.81 | +0.1% | 650 | C2 Mid-low aspect |
| RRD | Spinner Pro Front Wing Y31 650 | 650 | +0.0% | 6.40 | -5.9% | 650 | C2 Mid-low aspect |
| Naish | Kite Foil Front Wing Kite Foil 650 | 650 | +0.0% | 6.30 | -7.4% | 640 | C2 Mid-low aspect |
| F-One | ESCAPE HM Carbon ESCAPE 630 | 630 | -3.1% | 6.50 | -4.4% | 640 | C2 Mid-low aspect |
| Lift Foils | 105 Havoc Front Wing 105 | 677 | +4.2% | 7.20 | +5.9% | 699 | C2 Mid-low aspect |
| Family | Aero Carve |
|---|---|
| Size | 650 |
| Area, cm² | 650 |
| Area basis | unknown |
| Span, mm | 660 |
| Chord, mm | — |
| Aspect ratio | 6.80 |
| Band | C2 Mid-low aspect |
| Brand files it under | Surf / carve |
| Disciplines | wing, prone, kite |
| Construction | D/LAB |
| Model year | 2024 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
See Duotone on the plot →Data current to August 2026. Fast Bobby is the researcher, never the reviewer: every figure above is the manufacturer's published claim, converted to comparable units, and nothing here is a riding impression.
