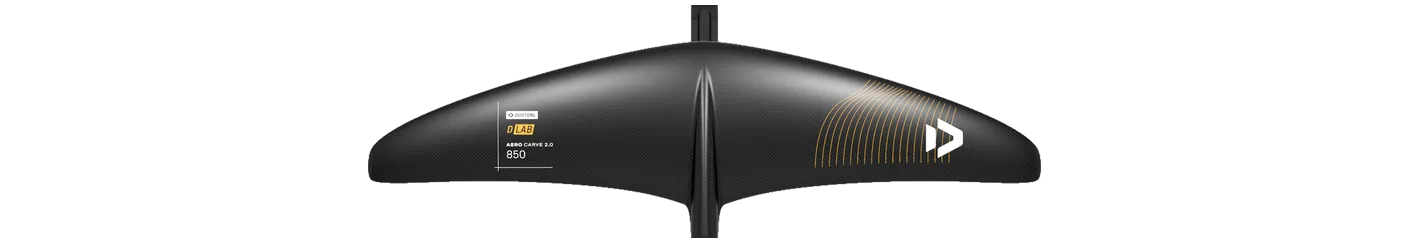

Duotone Aero Carve 2.0 D/LAB 850
- Discontinuedsuperseded or no longer in the brand’s current range
- 850area, cm²
- 730span, mm
- 6.30aspect ratio
- Mid-lowaspect · AR 6.0 – 8.5
Family Aero Carve Brand’s category Surf / carve Disciplines wing, prone, kite D/LAB · 2024
The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the Naish Ultra Jet Front Wing 850, is already drawn over it. Select a numbered wing to draw it — up to three at a time.
The Aero Carve 2.0 D/LAB has run 4 sizes, 500–1,100 cm², including discontinued sizes, and changes proportion as it grows: aspect ratio runs 6.0 at one end of the range to 7.5 at the other, so its sizes differ in shape as well as in area.
Its 730 mm span is 18% narrower than typical for the area — the median across the 127 current wings within 10% of its size is 890 mm.
Closest wings from other brands
Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.
| Brand | Wing | Area cm² | Δ area | Aspect ratio | Δ AR | Span mm | Band |
|---|---|---|---|---|---|---|---|
| Naish | Ultra Jet Front Wing 850 | 850 | +0.0% | 6.20 | -1.6% | 725 | Mid-low aspect |
| RRD | Blaze LTE Front Wing Y30 850 | 850 | +0.0% | 6.20 | -1.6% | 725 | Mid-low aspect |
| GONG | X-Over V3 M | 850 | +0.0% | 6.40 | +1.6% | 740 | Mid-low aspect |
| F-One | PHANTOM S Carbon PHANTOM-S 840 | 840 | -1.2% | 6.50 | +3.2% | 740 | Mid-low aspect |
| Axis | BSC (Broad Spectrum Carve) 740 | 883 | +3.9% | 6.49 | +3.0% | 740 | Mid-low aspect |
| RRD | Universal Mantaray Front Wing Y30 850 | 850 | +0.0% | 6.70 | +6.3% | 760 | Mid-low aspect |
| Axis | Spitfire 720 | 815 | -4.1% | 6.47 | +2.7% | 720 | Mid-low aspect |
Specifications
| Family | Aero Carve |
|---|---|
| Size | 850 |
| Area, cm² | 850 |
| Area basis | unknown |
| Span, mm | 730 |
| Chord, mm | — |
| Aspect ratio | 6.30 |
| Band | Mid-low aspect |
| Brand’s category | Surf / carve |
| Disciplines | wing, prone, kite |
| Construction | D/LAB |
| Model year | 2024 |
| Source | manufacturer |
The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.
Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
