Fast Bobby · wings · Duotone · discontinued

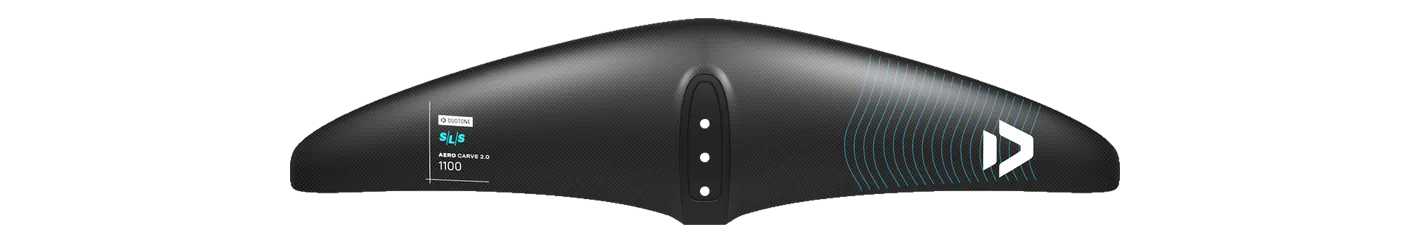

Duotone Aero Carve 2.0 SLS 1100

Discontinuedsuperseded or no longer in the brand’s current range
1,100area, cm²
830span, mm
6.30aspect ratio
Mid-lowaspect · AR 6.0 – 8.5

Family Aero Carve Brand’s category Surf / carve Disciplines wing, prone, kite SLS · 2024

Drawn to scale · the closest current wings

true relative scale

The closest current wings from other brands — every one within ±5% of area and ±8% of aspect ratio, ranked closest first. The closest, the GONG X-Over V3 L, is already drawn over it. Select a numbered wing to draw it — up to three at a time.

5F-One PHANTOM Carbon 1080no outline7RRD Universal Mantaray Front Wing Y30 1050no outlineSpecs · table ↓

Duotone Aero Carve 2.0 SLS 1100 · 830 mm span · traced from the manufacturer’s plan view · drawn nose-up, wings aligned on the mid-point of the root chord (the dotted line). ▬ GONG X-Over V3 L · 840 mm

The Aero Carve 2.0 SLS has run 3 sizes, 850–1,430 cm², including discontinued sizes; aspect ratio moves 6.0–6.7 across the range.

Its 830 mm span is 17% narrower than typical for the area — the median across the 124 current wings within 10% of its size is 1,000 mm.

Closest wings from other brands

Projected and flat area run 3–8% apart. A marked area is one whose brand does not state which it publishes, so a comparison inside the area tolerance may be comparing unlike figures.

Current wings from other brands within ±5% of area and ±8% of aspect ratio of the Duotone Aero Carve 2.0 SLS 1100, closest first.
Brand	Wing	Area cm²	Δ area	Aspect ratio	Δ AR	Span mm	Band
GONG	X-Over V3 L	1,100	+0.0%	6.40	+1.6%	840	Mid-low aspect
GONG	X-Over V3 Atmo L	1,108	+0.7%	6.40	+1.6%	840	Mid-low aspect
Axis	BSC (Broad Spectrum Carve) 810	1,070	-2.7%	6.42	+1.9%	810	Mid-low aspect
RRD	Blaze LTE Front Wing Y30 1100	1,100	+0.0%	6.00	-4.8%	835	Low aspect
F-One	PHANTOM Carbon 1080	1,080	-1.8%	5.90	-6.3%	800	Low aspect
Naish	Ultra Jet Front Wing 1050	1,050	-4.5%	5.90	-6.3%	785	Low aspect
RRD	Universal Mantaray Front Wing Y30 1050	1,050	-4.5%	6.70	+6.3%	840	Mid-low aspect

Specifications

Every figure is Duotone's own, read from the source linked in the last row, converted to area in cm² and span in mm.
Family	Aero Carve
Size	1100
Area, cm²	1,100
Area basis	unknown
Span, mm	830
Chord, mm	—
Aspect ratio	6.30
Band	Mid-low aspect
Brand’s category	Surf / carve
Disciplines	wing, prone, kite
Construction	SLS
Model year	2024
Source	manufacturer

The brand's published aspect ratio agrees with its own span and area (span² ÷ area) to within 5%, so the figure is confirmed.

Data current to August 2026. Every figure above is the manufacturer's published claim, converted to comparable units.
